SKF 22228 CC/W33 bearing – available to order for 18,701 CZK

SPHERICAL ROLLER BEARINGS
Spherical roller bearings can transmit radial loads as well as high axial loads in both directions. They consist of two rows of barrel-shaped rollers and share a common spherical raceway in the outer ring. The bearings are self-aligning and can therefore compensate for shaft misalignment relative to the housing or for shaft deflection.

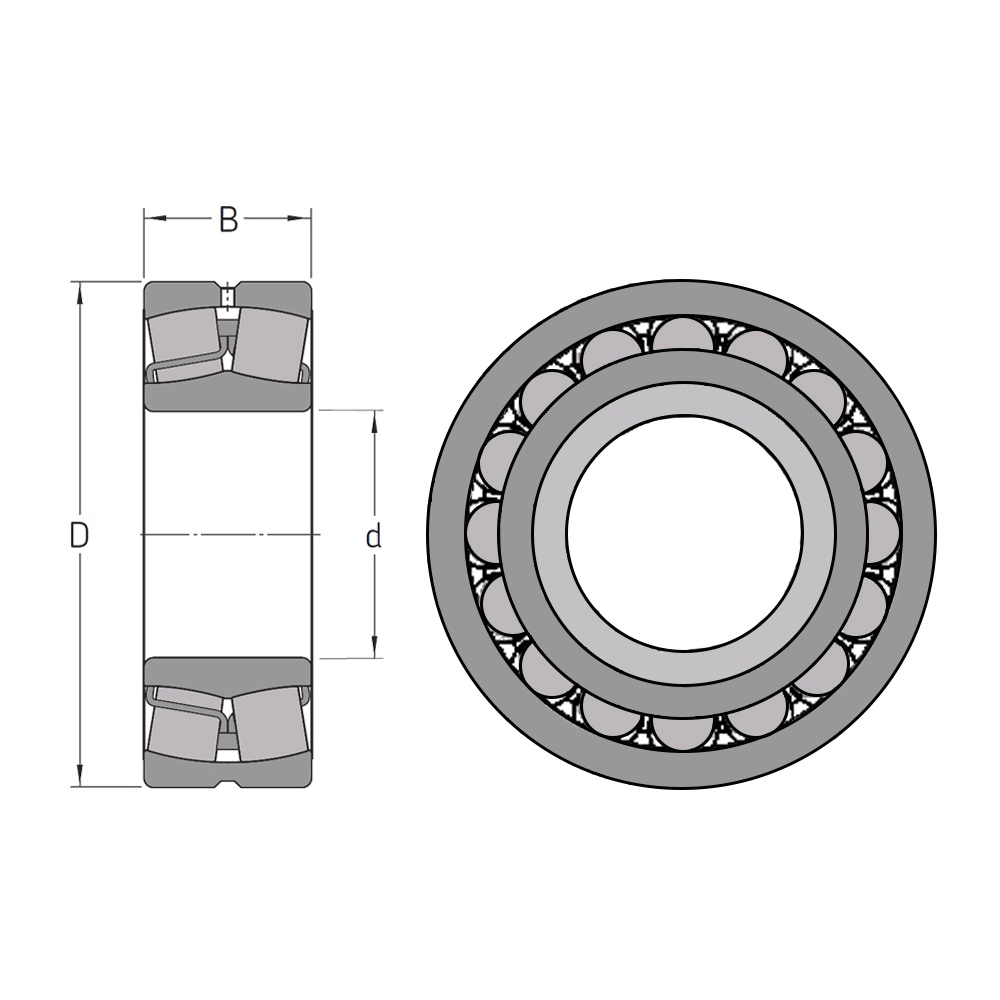

Bearing identification:
d: inner diameter (mm) of the bearing
D: outer diameter (mm) of the bearing
B: width (mm) of the bearing

Standard bearing suffix codes:
2CS – contact seal of NBR (2CS5 – HNBR rubber)
K – Tapered bore
E – If the bore diameter d ≥ 65 mm:
Two stamped window steel cages, inner ring without guide flanges, and a guide ring centred on the inner ring.
If bore diameter d < 65 mm:
Two stamped window steel cages, inner ring without guide flanges, guide ring centred by the cages.
C (J), CC – Two stamped floating window steel cages, inner ring without guide flanges, guide ring centred on the inner ring.
EC(J), ECC(J) – Two stamped window steel cages, inner ring without guide flanges, guide ring centred on the inner ring, larger rollers.
W33 – Circumferential lubrication groove with three holes in the outer ring (W33X – 6 lubrication holes).
C2,C3,C4,C5 – Radial internal clearance
P6 – Dimensional and running accuracy per ISO class 6
W – Outer ring without lubrication groove and holes.
