SKF 3203 ATN9 bearing – available to order for 856 CZK

DOUBLE-ROW ANGULAR CONTACT BALL BEARINGS
Double-row angular contact ball bearings are based on the construction of two single-row angular contact ball bearings. They feature optimised internal geometry and have no filling slots.
These bearings are universal, with high radial and axial load capacity in both directions, and are relatively quiet in operation. They can also be supplied with shields or seals on both sides.

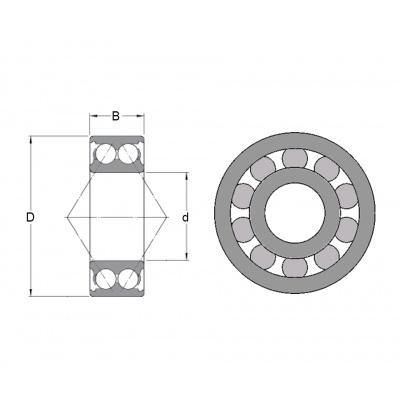

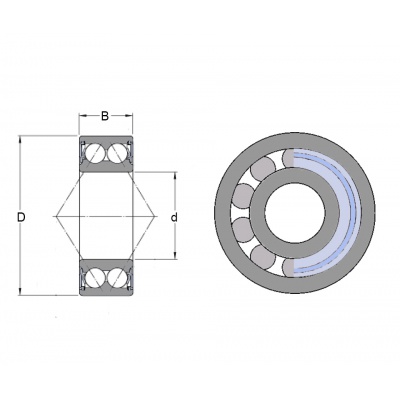

Bearing dimension identification:
d: inner diameter (mm) of the bearing
D: outer diameter (mm) of the bearing
B: width (mm) of the bearing

Standard suffix codes:
2RS1 – Contact seal of nitrile rubber, reinforced with a steel ring on both sides
2Z – Stamped steel shields on both sides
A – No filling slots
CB – Controlled axial internal clearance
C2 – Axial internal clearance smaller than normal
C3 – Axial internal clearance greater than normal
D – Split inner ring
J1 – Stamped open steel cage, roller-guided
M – Machined brass window cage, roller-guided
MT33 – Lithium-thickened grease, NLGI consistency class 3, operating temperatures −30 to +120 °C
P5 – Dimensional and running accuracy according to ISO class 5
P6 – Dimensional and running accuracy according to ISO class 6
P62 – P6 + C2
P63 – P6 + C3
TN9 – Injection-moulded open cage from glass-fibre reinforced polyamide 6.6, roller-guided; W64 — Solid Oil fill
