Bearing 6003 2Z IBB – available to order for 32 CZK

SINGLE-ROW BALL BEARINGS

TYPE – W - 2Z/ZZ: Stainless ball bearing with a stainless steel sheet shield on both sides.
TYPE – W - Z: Stainless ball bearing with a stainless steel sheet shield on one side.
Ball bearings are the most widespread and most commonly used type of bearings due to their ability to handle very high speeds. They are suitable for both radial and axial loads. Ball bearings are supplied in many designs, variants and sizes — standard designs: open, sealed, or shielded.

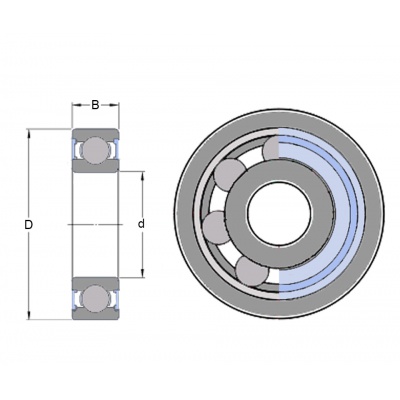

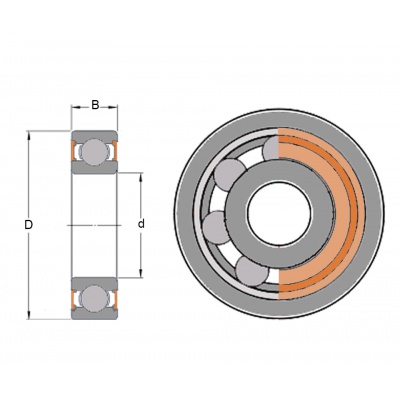

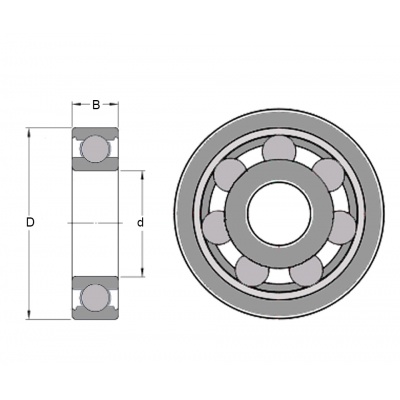

Bearing dimension identification:
d: inner diameter (mm) of the bearing
D: outer diameter (mm) of the bearing
B: width (mm) of the bearing

Standard bearing suffix codes:
C1,C2,C3,C4,C5: radial internal clearance of the bearing
P5,P6: precision tolerance class for radial bearings
Z, ZZ, 2Z: shield – steel sheet
RZ: seal – nitrile rubber reinforced with a steel sheet
RS,RS1,2RS,2RSH: seal – nitrile rubber
