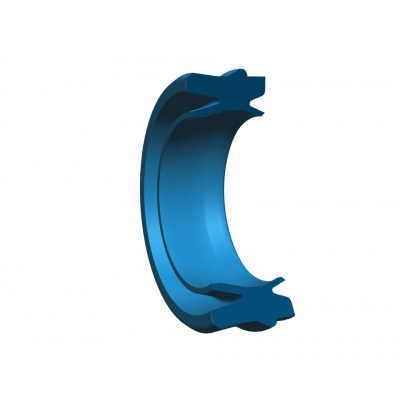

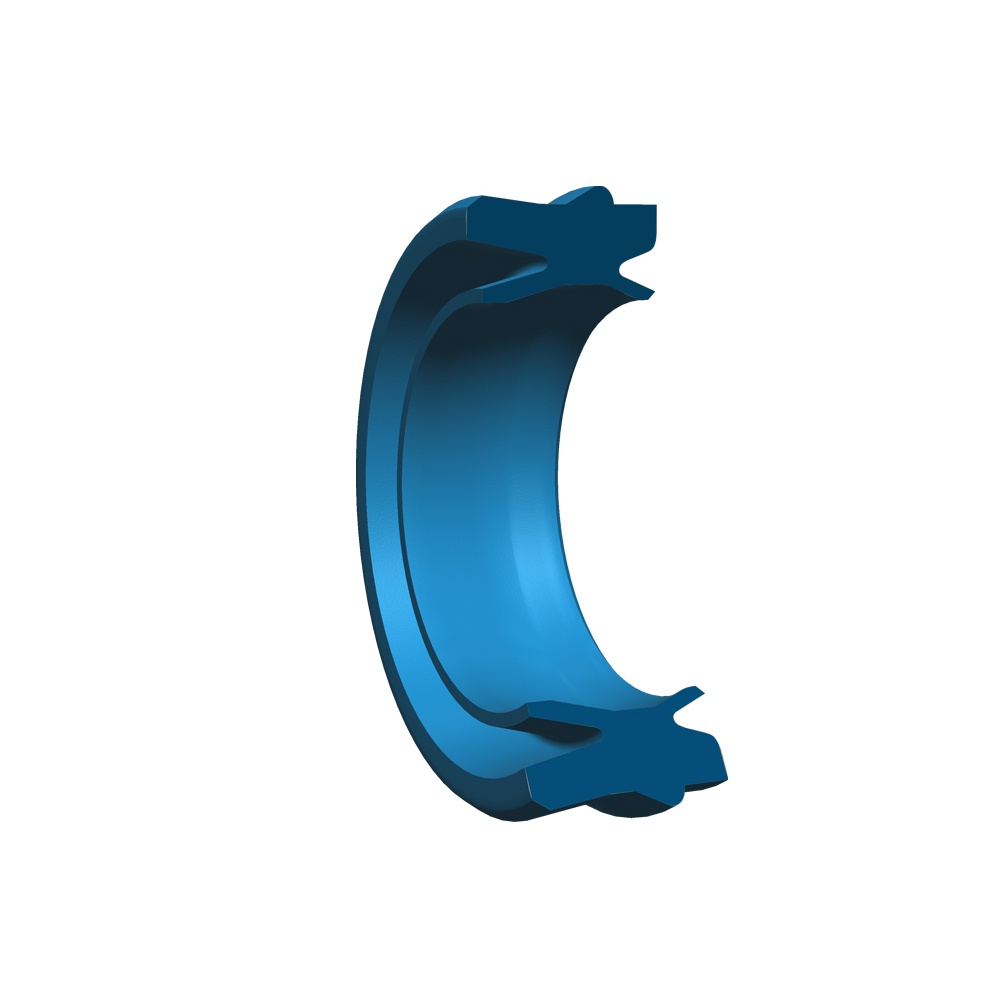

Gland 22x32x7/9.5 AUNIPSL (K51) PU

Kč112.65
Tax included Kč93.09 without VAT
Quantity
Product available for orders

Technical parameters — Sleeve 22×32×7 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)22 mm
Outer diameter (D)32 mm
Width (B)7 mm
Max pressuredo 40 MPa
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…22x32x7, 22 x 32 x 7, 22,00x32,00x7,00, 22,00 x 32,00 x 7,00, 22-32-7, 22×32×7, 22.00x32.00x7.00, 22.00 x 32.00 x 7.00, 22*32*7, 22X32X7, 22 32 7, 22 * 32 * 7, 22 X 32 X 7, 22,00*32,00*7,00, 22,00X32,00X7,00, 22,00 32,00 7,00, 22,00 * 32,00 * 7,00, 22,00 X 32,00 X 7,00, 22.00*32.00*7.00, 22.00X32.00X7.00, 22.00 32.00 7.00, 22.00 * 32.00 * 7.00, 22.00 X 32.00 X 7.00, 22x32x7 mm, 22x32x7mm, 22 x 32 x 7 mm, 22 x 32 x 7mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1303825

Data sheet

wiper/scraper ring type
K51/AUNIPSL
wiper/scraper ring inner ⌀ [mm]
22
wiper/scraper ring outer ⌀ [mm]
32
wiper/scraper ring width [mm]
9.5
