Řemen ozubený T5-1100 - 11 mm PU+ocel.kord

TIMING BELTS TYPE „T"
Type „T" timing belts are manufactured from polyurethane with a tension cord (standard – steel). The trapezoidal teeth have excellent mechanical tensile resistance and are suitable for transmitting standard power in modern drives. Type „T" belts are used as synchronous drive or transport belts. Their application depends on the profile, ranging from miniature drives in precision mechanics to large printing machines. They have good resistance to petrol, UV radiation and abrasion. They are not antistatic.
Profiles with steel cord: T2.5, T5, T10

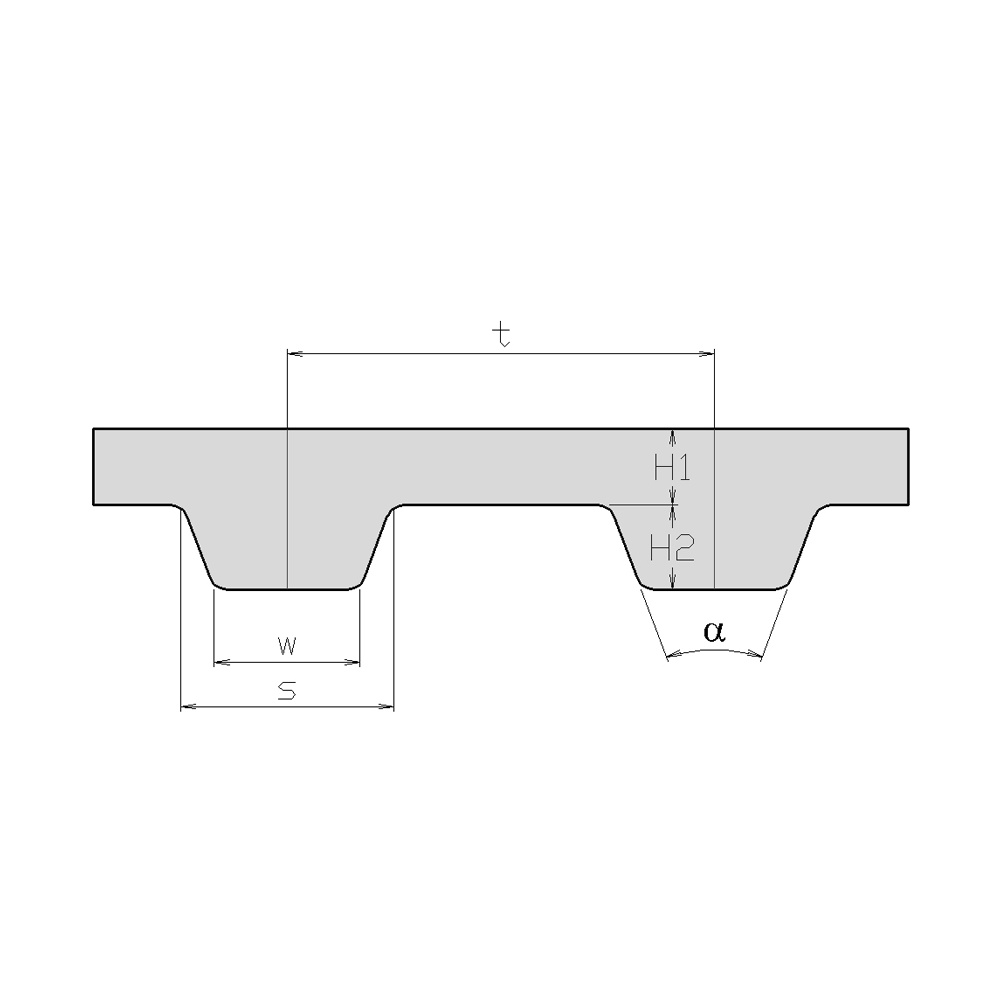

Dimensions – T5
α = 40°
t = 5.00 mm Tooth pitch
H1 = 1.00 mm Body height
H2 = 1.20 mm Tooth height
H = 2.20 mm Total height
S = 2.70 mm Tooth base

If you cannot find a suitable ready-made timing belt, please see the „Flat sleeves – timing" section. There you will find a wide range of sleeve sizes from which we can manufacture a belt of the required width. Please specify the belt width in your order.
