Řemen ozubený ZR L 255 - 10 mm

CTB/ZR – L TIMING BELTS
Inch-pitch timing belts CTB, sometimes also designated as ZR, have trapezoidal teeth. They are mainly used in older industrial applications, or where an economical solution is required for drives with standard or lower power-transmission demands. The belts are oil- and ozone-resistant. They are not antistatic.
Standard profiles supplied:
CTB (neoprene) MXL, XL, L, H, HX, XXH
CTB (polyurethane) MXL, XL, L, H

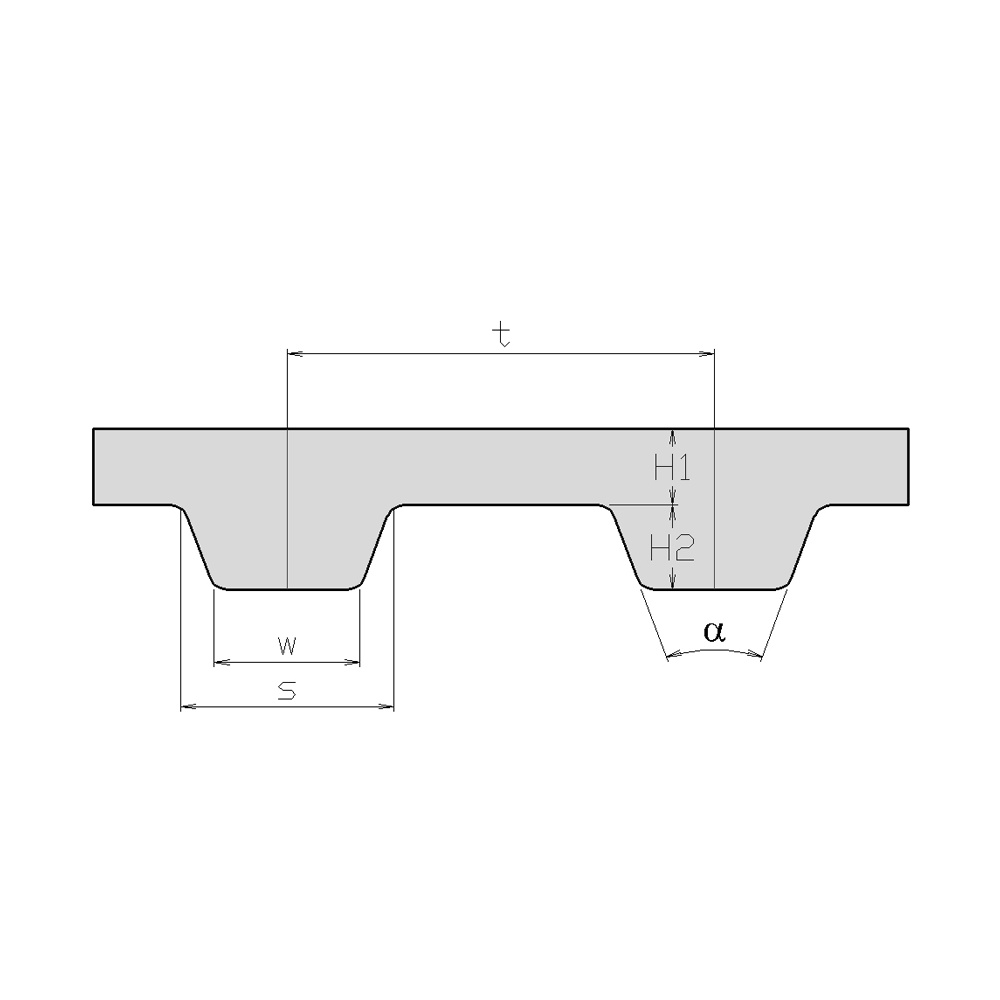

Dimensions/parameters of the L profile:
α = 40°
t = 9.525 mm Tooth pitch
H1 = 1.69 mm Body height
H2 = 1.91 mm Tooth height
H = 3.60 mm Total height
S = 4.65 mm Tooth base

If you cannot find a suitable ready-made timing belt, please see the „Flat sleeves – timing" section. There you will find a wide range of sleeve sizes from which we can manufacture a belt of the required width. Please specify the belt width in your order.
