HTD 5M-450 toothed sleeve – price per 1 mm – in stock 24 CZK

HTD-5M TIMING SLEEVES
HTD belts are manufactured from neoprene with PAD fabric tooth protection. They are currently the most versatile type of synchronous timing belts. HTD belts are mainly used in applications requiring precise timing and standard power transmission. Depending on tooth pitch (which determines transmitted power), they are used everywhere from miniature equipment to large drives in industrial and agricultural machinery — quiet even at high speeds.
Standard profiles supplied:
HTD – 3M, 5M, 8M, 14M
HTD double-sided – D5M, D8M

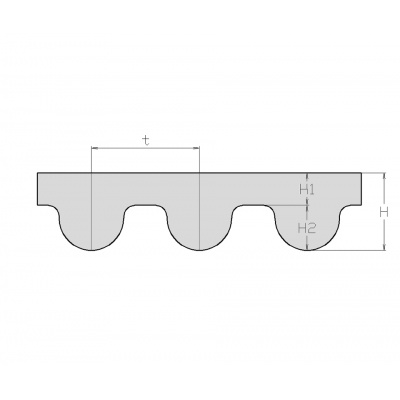

Dimensions/parameters of the 5M profile
t = 5.00 mm Tooth pitch
H1 = 1.88 mm Body height
H2 = 1.93 mm Tooth height
H = 3.81 mm Total height
S = 3.00 mm Tooth base

Standard widths:
Code 9 = 9.00 mm
Code 15 = 15.00 mm
Code 25 = 25.00 mm
