Bearing 6202

The 6202 bearing is a single-row ball bearing measuring 15 × 35 × 11 mm (inner diameter 15 mm, outer diameter 35 mm, width 11 mm). We stock 28 variants, 16 of which are in stock and ready for dispatch within 24 hours. Prices start at 21 Kč and vary depending on the manufacturer and variant.

Dimensions and interchangeability

The designation 6202 is an international standard (ISO 15), so a 6202 bearing from any manufacturer always has the same dimensions of 15 × 35 × 11 mm and is mechanically interchangeable. They differ only in terms of seal design, clearance, precision and service life. When replacing a worn part, you can therefore choose a different brand to the one used in the original machine.

Variants we stock

• 6202 2RS – double-sided rubber seals – for dusty and damp environments
• 6202 2RSH – double-sided rubber seals (SKF designation)
• 6202 LLU – double-sided rubber seal (NTN designation)
• 6202 2Z – double-sided metal shield – lower friction, higher speeds
• 6202 ZZ – double-sided sheet metal cover (NTN designation)
• 6202 C3 – increased radial clearance – for higher temperatures and interference fits

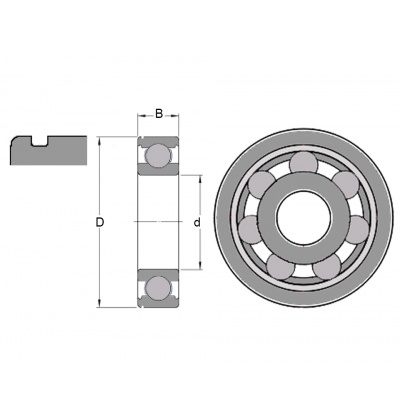

• 6202 N – groove for retaining ring on outer ring
• 6202 NR – groove including supplied retaining ring

Without a suffix, this is an open bearing without seals — the most economical option for clean and permanently lubricated mountings.

Manufacturers

For the 6202 designation, we offer the brands SKF, NTN, ZVL, IBB, CRF and NEU. ZVL or IBB are sufficient for standard operation; for demanding and high-speed applications, we recommend SKF or NTN.

How to choose

The dimensions are identical for all 6202 bearings, so the environment is the deciding factor: the 2RS type with seals for dusty and damp conditions; the 2Z type with covers for clean and high-speed applications; and C3 clearance for heating or press-fitting. If you’re unsure, we can advise you based on the machine and the original part — tel: 270 003 620. You can find details on bearing designations in the guide ‘How to choose a bearing’.
