Bearing 6200

The 6200 bearing is a single-row ball bearing measuring 10 × 30 × 9 mm (internal diameter 10 mm, external diameter 30 mm, width 9 mm). We stock 22 variants, 16 of which are in stock and ready for dispatch within 24 hours. Prices start at 19 Kč and vary depending on the manufacturer and variant.

Dimensions and interchangeability

The 6200 designation is an international standard (ISO 15), so a 6200 bearing from any manufacturer will always have the same dimensions of 10 × 30 × 9 mm and is mechanically interchangeable. They differ only in seal design, clearance, precision and service life. When replacing a worn part, you can therefore choose a different brand to the one used in the original machine.

Variants we stock

• 6200 2RS – double-sided rubber seals – for dusty and damp environments
• 6200 2RSH – double-sided rubber seal (SKF designation)
• 6200 LLU – double-sided rubber seal (NTN designation)
• 6200 2Z – double-sided metal shield – lower friction, higher speeds

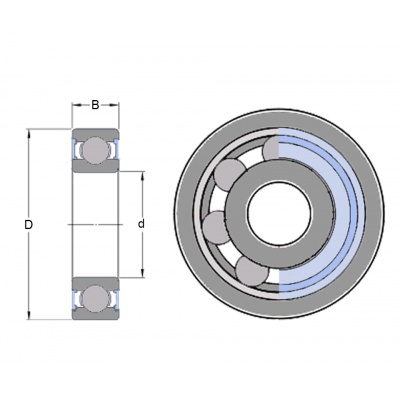

• 6200 ZZ – double-sided sheet metal cover (NTN designation)
• 6200 C3 – increased radial clearance – for higher temperatures and interference fits

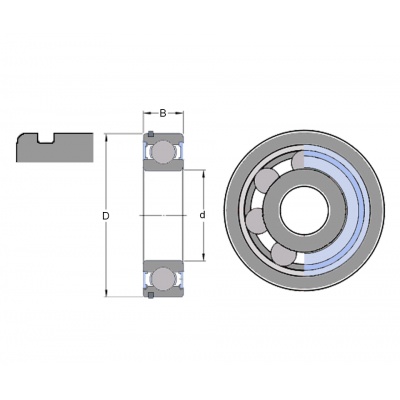

• 6200 NR – groove including supplied retaining ring

Without a suffix, this is an open bearing without a seal — the most economical option for clean and permanently lubricated mountings.

Manufacturers

For the 6200 designation, we offer SKF, NTN, ZVL, ZKL, IBB, KG and CX brands. ZVL or ZKL are sufficient for normal operation; for demanding and high-speed applications, we recommend SKF or NTN.

How to choose

The dimensions are identical for all 6200 bearings, so the environment is the deciding factor: 2RS sealed bearings for dusty and damp conditions; 2Z shielded bearings for clean and high-speed applications; and C3 clearance for heating or press-fitting. If you’re unsure, we can advise you based on the machine and the original part — tel: 270 003 620. You can find details on bearing designations in the guide ‘How to choose a bearing’.
