Flat round gasket (220x273x2) DN200 PN10-16 BA-GL ČSN131550.1

Kč119.79
Tax included Kč99.00 without VAT
Quantity
Product available for orders

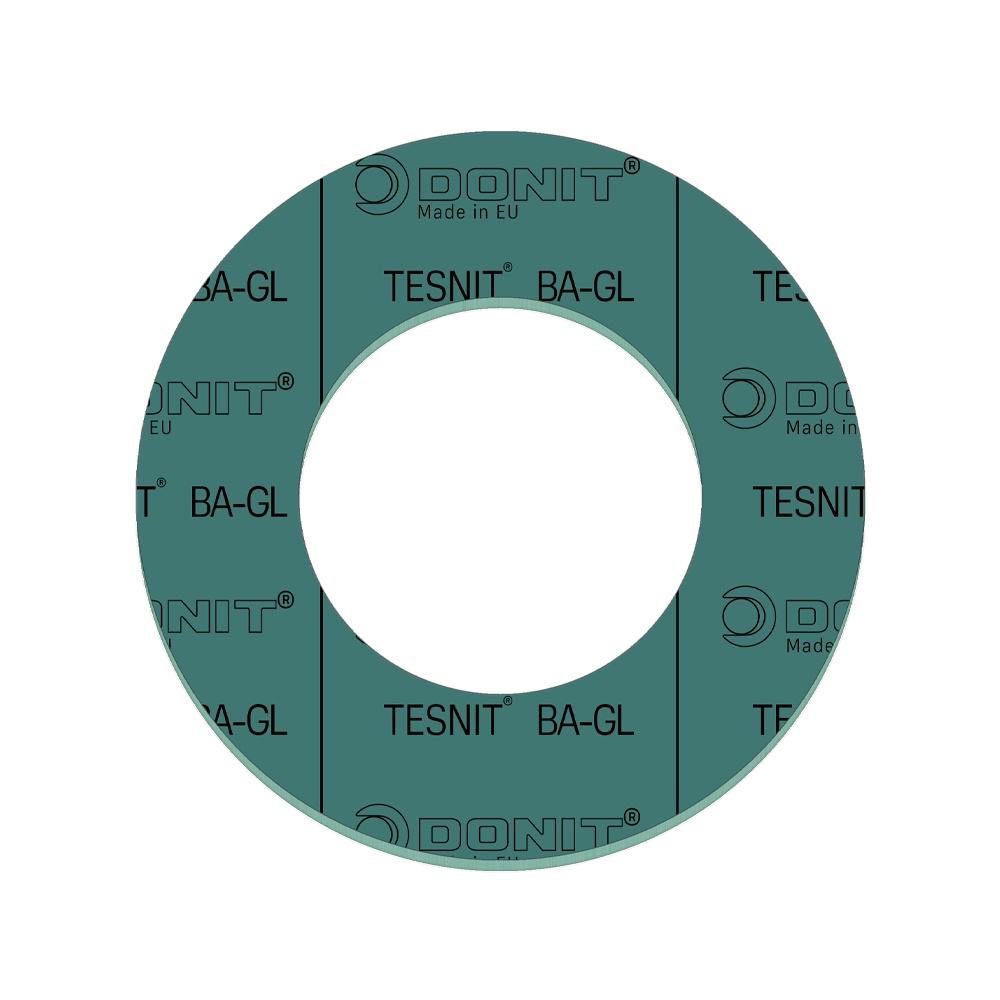

Sealing ring (220x273x2) BA-GL ČSN 131550.1

BA GL
BA GL is a high-quality, asbestos-free sealing material based on nitrile rubber (NBR)
and compressed glass fibres. The BA GL seal offers high mechanical resistance. It is recommended
for high pressures and temperatures.

440°C: maximum recommended temperature
350°C: continuous operating temperature
250°C: continuous operating temperature for steam
100 bar: maximum recommended pressure

NOTE
The maximum temperature and pressure values cannot be used simultaneously.
Colour: light blue

TS0802151

Data sheet

PN
10–16
DN
200
Standard
CSN 13 1550.1
flat seal - thickness (mm)
2
flat seal - outer ⌀ (mm)
273
flat seal - inner ⌀ (mm)
220
