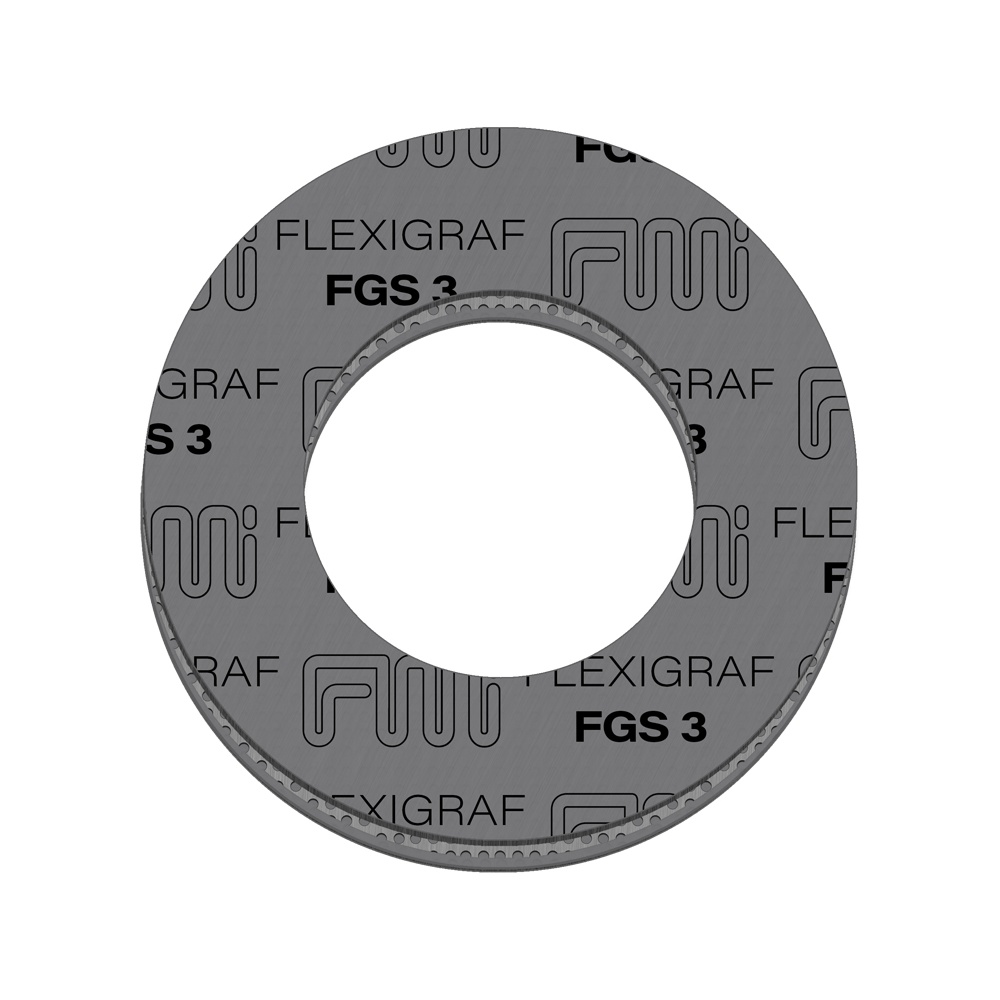

Flat round gasket (220x273x2) DN200 PN10-16 FGS3 ČSN 13 1550.1

Flexigraf FGS3

FGS3 is a material based on high-purity graphite foil (>98%), reinforced
with a perforated stainless steel core (AISI 316L standard).
FGS 3 is a flat gasket suitable for applications requiring high sealing compression
and resistance to gasket extrusion. The gasket is suitable for a wide range of chemicals,
high temperatures and pressures in power stations, and the chemical and petrochemical industries.
Not suitable for sealing in oxidising environments.
Note: When using the seal in inert or reducing atmospheres
the possibility of the seal being attacked by the external environment must be taken into account.
Do not use with strong oxidising agents!

-200°C to +700°C: maximum recommended temperature for internal and reducing environments
-200°C to +500°C: maximum recommended temperature for oxidising environments
200 bar (20 MPa): maximum recommended pressure
Colour: black graphite
