AT5 toothed belt (sold by the metre) – 25 mm PU+st

TIMING BELTS – By the metre, TYPE ‘AT’
The AT polyurethane profile was developed as an improved alternative to the T profile for applications requiring the transmission of higher power. The tooth profile is based on the classic T-profile, but the AT profile has a wider base and tooth crest. Thanks to this widening of the tooth, the AT profile is capable of transmitting up to 50% more power. The polyurethane body ensures clean, dust-free operation, which is required in the food industry.
They are mainly used as drive or conveyor belts.
Steel-fibre reinforced profiles: AT5, AT10

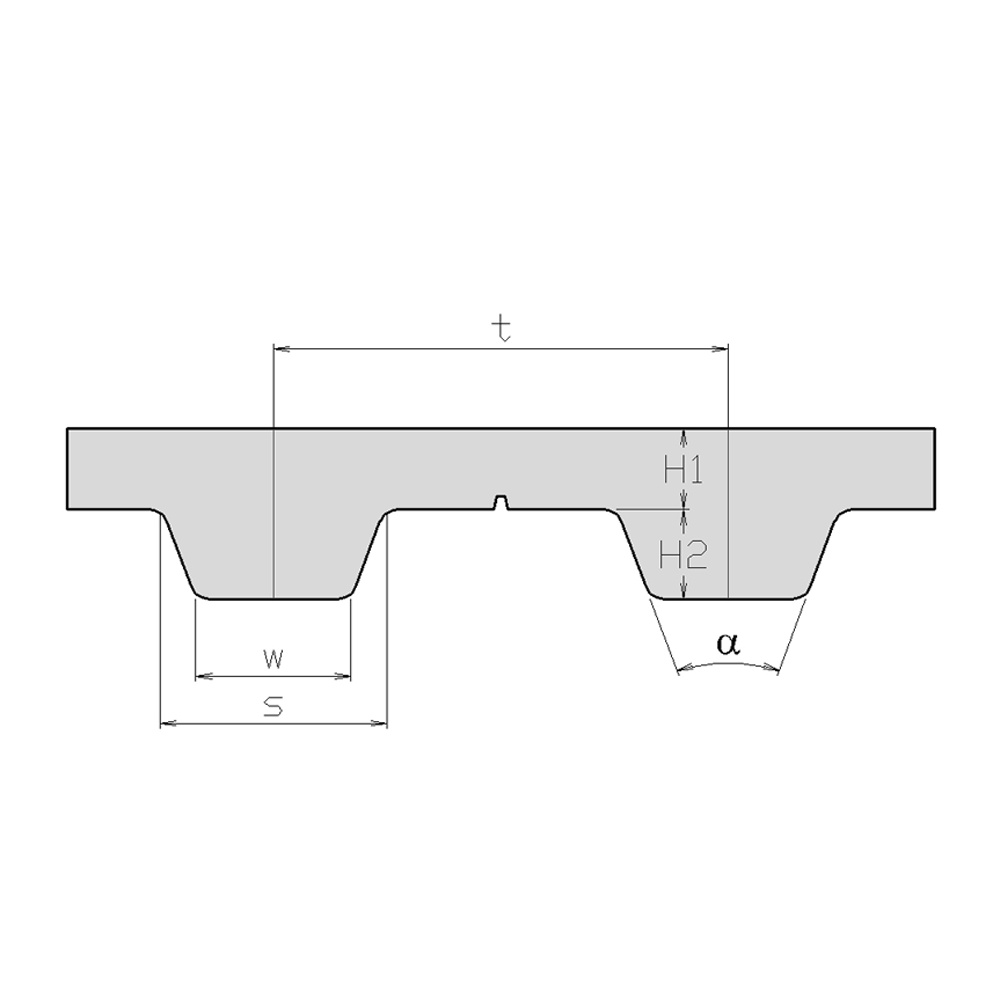

Dimensions – AT5
α = 50°
t = 5 mm Tooth pitch.
H1 = 1.50 mm Body height.
H2 = 1.20 mm Tooth height.
S = 3.60 mm Total height
