ZR H toothed belt, sold by the metre – 25.40 mm (code 100) PU+st

TIMING BELTS – BY THE METRE, TYPE ‘ZR H’
ZR H inch-sized timing belts are fitted with trapezoidal-profile teeth. These belts, made from neoprene (CR rubber), were the first type of profile developed for use in synchronous belt drives.

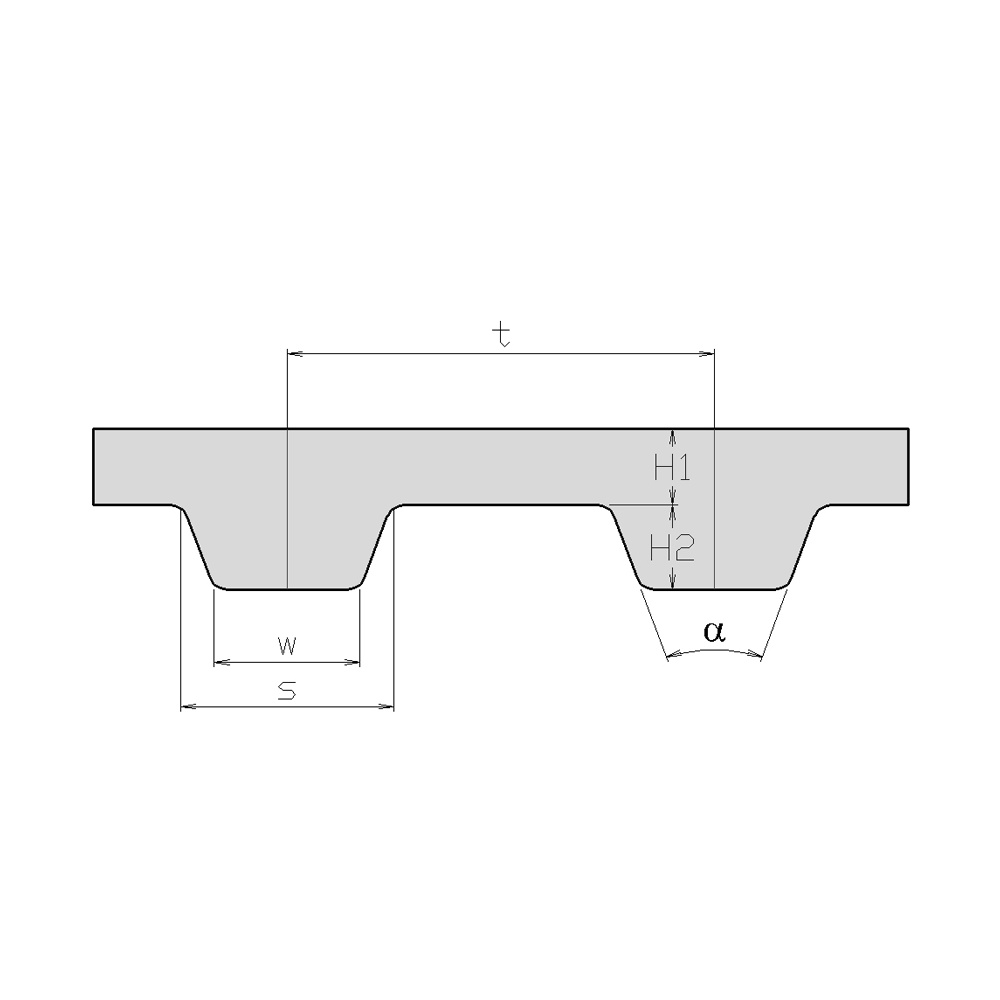

Dimensions – ZR H
α = 40°
t = 12.70 mm Tooth pitch.
H1 = 1.81 mm Body height.
H2 = 2.29 mm Tooth height.
H = 4.10 mm Total height
S = 6.12 mm Tooth base
