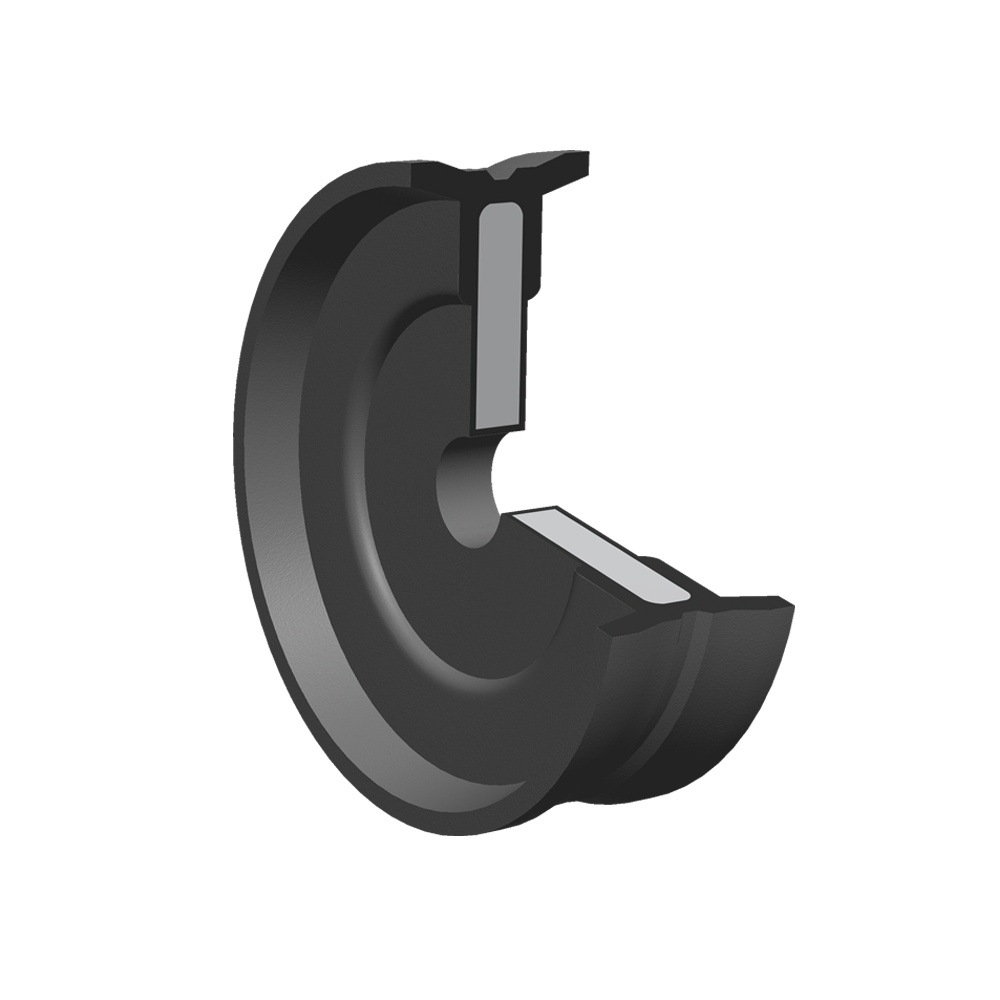

12x90x24 TDUO-P seal
Technical parameters — Sleeve 12×90×24 U NBR
| Product type | U-manžeta — jednočinný píst |
|---|---|
| Operating temperature | -40 až +100 °C |
| Inner diameter (d) | 12 mm |
| Outer diameter (D) | 90 mm |
| Width (B) | 24 mm |
| Max pressure | do 400 bar (40 MPa) |
| Max peripheral speed | do 0,5 m/s |
| Material | NBR — nitril-butadien kaučuk |
| Resistance | minerální oleje, voda |
Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.
Frequently searched as…
12x90x24, 12 x 90 x 24, 12,00x90,00x24,00, 12,00 x 90,00 x 24,00, 12-90-24, 12×90×24, 12.00x90.00x24.00, 12.00 x 90.00 x 24.00, 12*90*24, 12X90X24, 12 90 24, 12 * 90 * 24, 12 X 90 X 24, 12,00*90,00*24,00, 12,00X90,00X24,00, 12,00 90,00 24,00, 12,00 * 90,00 * 24,00, 12,00 X 90,00 X 24,00, 12.00*90.00*24.00, 12.00X90.00X24.00, 12.00 90.00 24.00, 12.00 * 90.00 * 24.00, 12.00 X 90.00 X 24.00, 12x90x24 mm, 12x90x24mm, 12 x 90 x 24 mm, 12 x 90 x 24mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1501402
Data sheet
- wiper/scraper ring width [mm]
- 24
- wiper/scraper ring type
- K25-TDUOP
- wiper/scraper ring inner ⌀ [mm]
- 12
- wiper/scraper ring outer ⌀ [mm]
- 90
