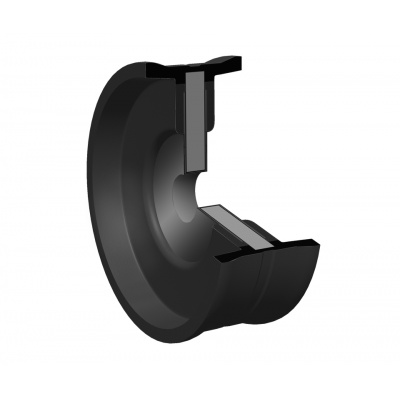

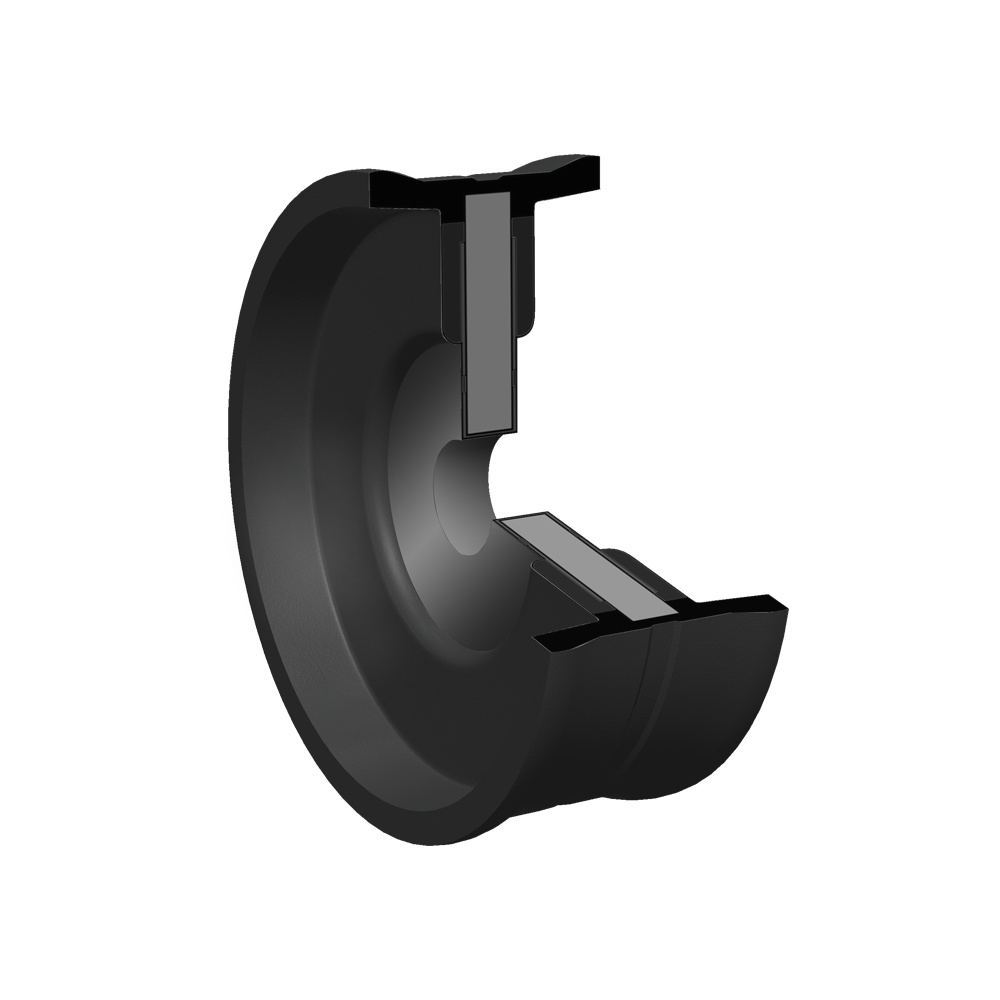

Gland 20x130x29/8 DK (TDUO-P) NBR

Kč1,733.66
Tax included Kč1,432.78 without VAT
Quantity
Product available for orders

Technical parameters — Sleeve 20×130×29 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)20 mm
Outer diameter (D)130 mm
Width (B)29 mm
Max pressuredo 400 bar (40 MPa)
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…20x130x29, 20 x 130 x 29, 20,00x130,00x29,00, 20,00 x 130,00 x 29,00, 20-130-29, 20×130×29, 20.00x130.00x29.00, 20.00 x 130.00 x 29.00, 20*130*29, 20X130X29, 20 130 29, 20 * 130 * 29, 20 X 130 X 29, 20,00*130,00*29,00, 20,00X130,00X29,00, 20,00 130,00 29,00, 20,00 * 130,00 * 29,00, 20,00 X 130,00 X 29,00, 20.00*130.00*29.00, 20.00X130.00X29.00, 20.00 130.00 29.00, 20.00 * 130.00 * 29.00, 20.00 X 130.00 X 29.00, 20x130x29 mm, 20x130x29mm, 20 x 130 x 29 mm, 20 x 130 x 29mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS0803939

Data sheet

wiper/scraper ring type
DK
wiper/scraper ring inner ⌀ [mm]
20
wiper/scraper ring outer ⌀ [mm]
130
wiper/scraper ring width [mm]
29
