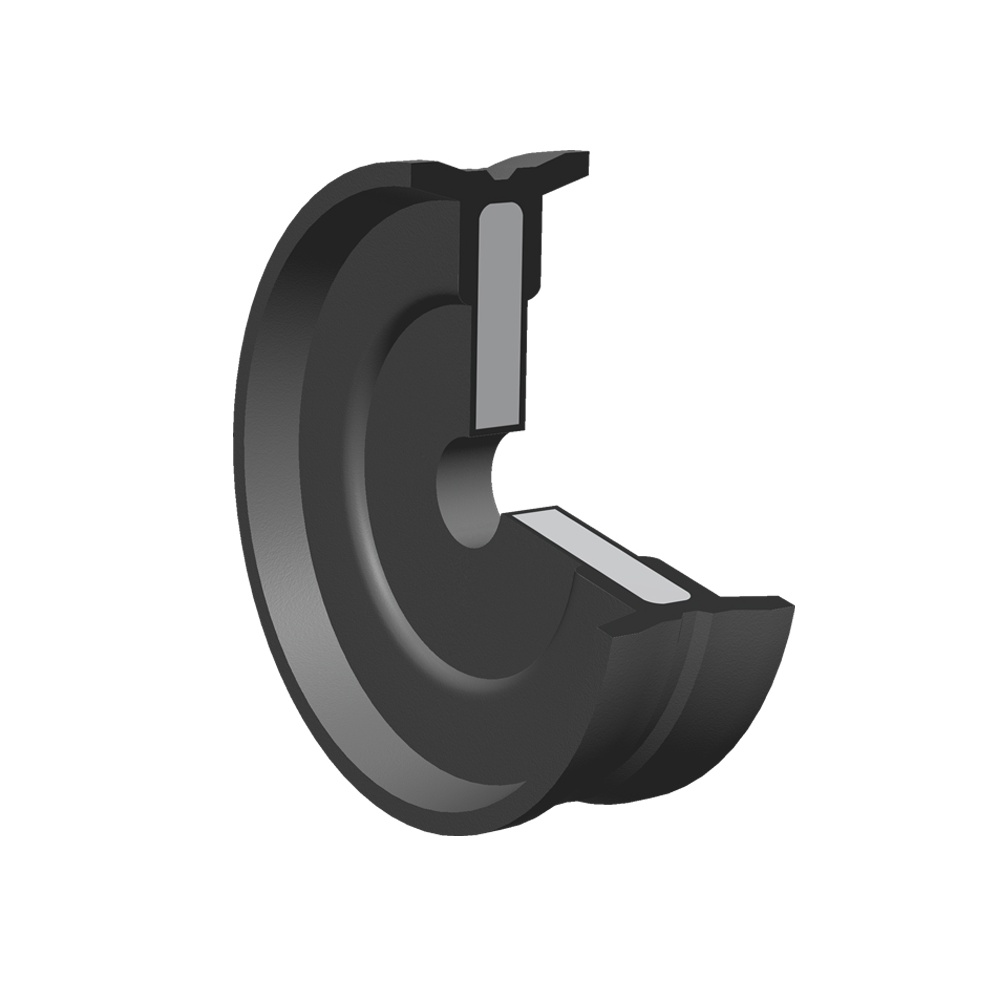

18x125x30 TDUO-P seal

Kč2,802.90
Tax included Kč2,316.44 without VAT
Quantity
Available to order

Technical parameters — Sleeve 18×125×30 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)18 mm
Outer diameter (D)125 mm
Width (B)30 mm
Max pressuredo 400 bar (40 MPa)
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…18x125x30, 18 x 125 x 30, 18,00x125,00x30,00, 18,00 x 125,00 x 30,00, 18-125-30, 18×125×30, 18.00x125.00x30.00, 18.00 x 125.00 x 30.00, 18*125*30, 18X125X30, 18 125 30, 18 * 125 * 30, 18 X 125 X 30, 18,00*125,00*30,00, 18,00X125,00X30,00, 18,00 125,00 30,00, 18,00 * 125,00 * 30,00, 18,00 X 125,00 X 30,00, 18.00*125.00*30.00, 18.00X125.00X30.00, 18.00 125.00 30.00, 18.00 * 125.00 * 30.00, 18.00 X 125.00 X 30.00, 18x125x30 mm, 18x125x30mm, 18 x 125 x 30 mm, 18 x 125 x 30mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1301513

Data sheet

wiper/scraper ring type
K25-TDUOP
wiper/scraper ring inner ⌀ [mm]
18
wiper/scraper ring outer ⌀ [mm]
125
wiper/scraper ring width [mm]
30
