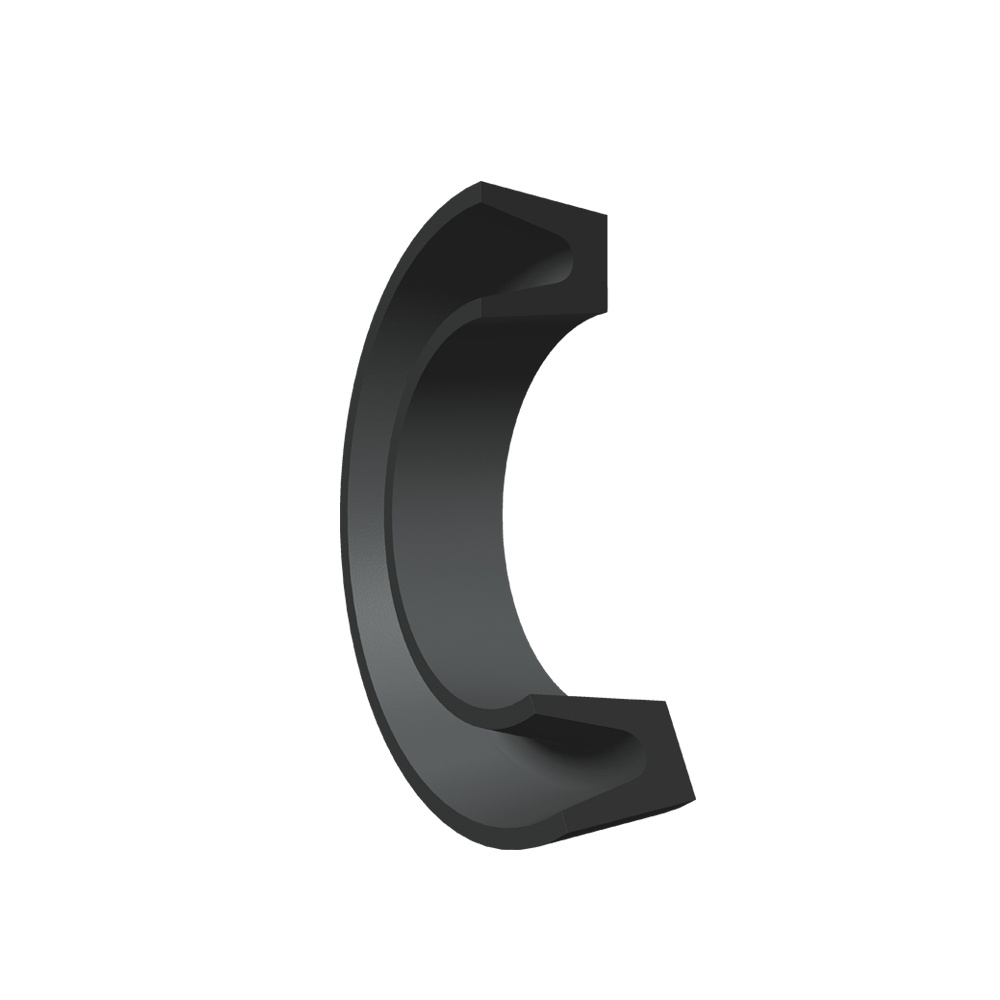

18x32x8 U-shaped NBR seal

Kč235.85
Tax included Kč194.92 without VAT
Quantity
Product available for orders

Technical parameters — Sleeve 18×32×8 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)18 mm
Outer diameter (D)32 mm
Width (B)8 mm
Max pressuredo 400 bar (40 MPa)
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…18x32x8, 18 x 32 x 8, 18,00x32,00x8,00, 18,00 x 32,00 x 8,00, 18-32-8, 18×32×8, 18.00x32.00x8.00, 18.00 x 32.00 x 8.00, 18*32*8, 18X32X8, 18 32 8, 18 * 32 * 8, 18 X 32 X 8, 18,00*32,00*8,00, 18,00X32,00X8,00, 18,00 32,00 8,00, 18,00 * 32,00 * 8,00, 18,00 X 32,00 X 8,00, 18.00*32.00*8.00, 18.00X32.00X8.00, 18.00 32.00 8.00, 18.00 * 32.00 * 8.00, 18.00 X 32.00 X 8.00, 18x32x8 mm, 18x32x8mm, 18 x 32 x 8 mm, 18 x 32 x 8mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1503669

Data sheet

wiper/scraper ring type
At the NBR
wiper/scraper ring inner ⌀ [mm]
18
wiper/scraper ring outer ⌀ [mm]
32
wiper/scraper ring width [mm]
8
