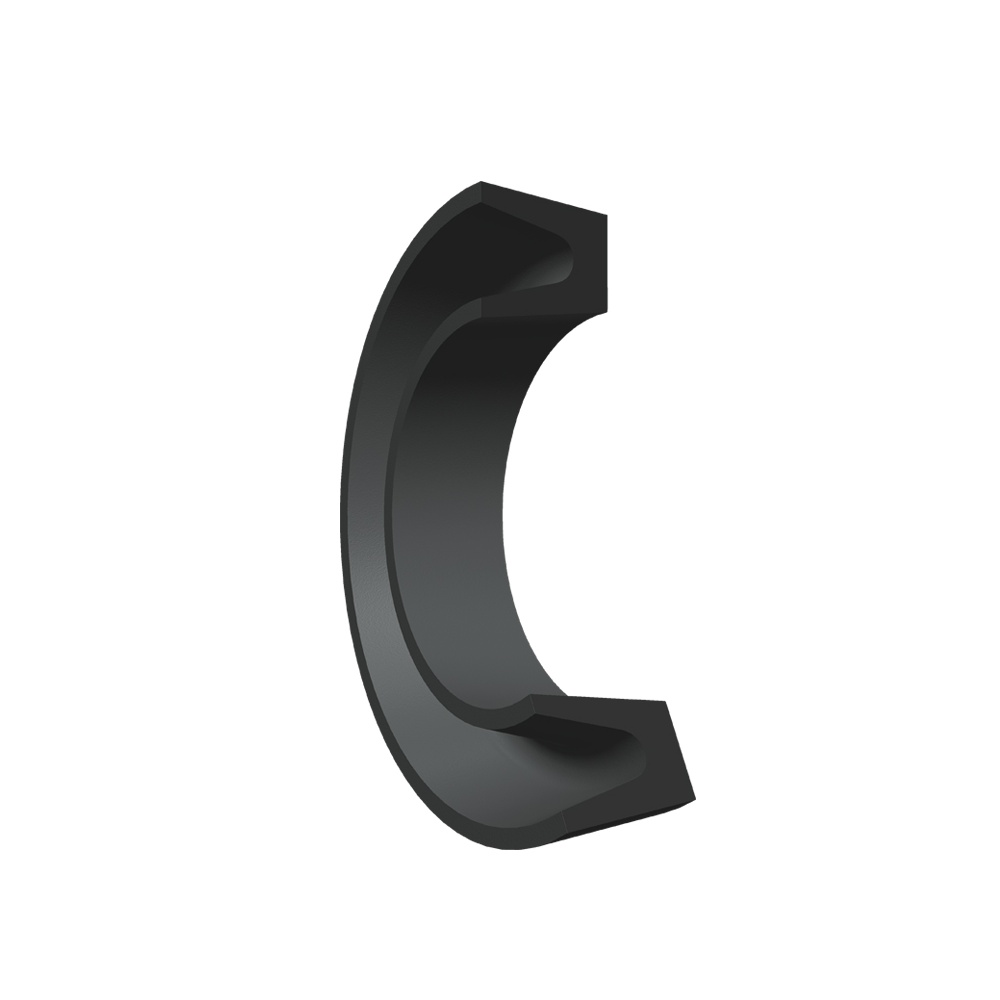

8x18x5 U-shaped NBR grommet – in stock 42 CZK

Kč42.35
Tax included Kč35.00 without VAT
Quantity
In Stock

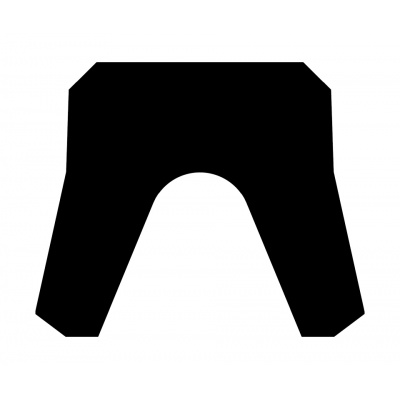

Technical parameters — Sleeve 8×18×5 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)8 mm
Outer diameter (D)18 mm
Width (B)5 mm
Max pressuredo 40 MPa
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…8x18x5, 8 x 18 x 5, 8,00x18,00x5,00, 8,00 x 18,00 x 5,00, 8-18-5, 8×18×5, 8.00x18.00x5.00, 8.00 x 18.00 x 5.00, 8*18*5, 8X18X5, 8 18 5, 8 * 18 * 5, 8 X 18 X 5, 8,00*18,00*5,00, 8,00X18,00X5,00, 8,00 18,00 5,00, 8,00 * 18,00 * 5,00, 8,00 X 18,00 X 5,00, 8.00*18.00*5.00, 8.00X18.00X5.00, 8.00 18.00 5.00, 8.00 * 18.00 * 5.00, 8.00 X 18.00 X 5.00, 8x18x5 mm, 8x18x5mm, 8 x 18 x 5 mm, 8 x 18 x 5mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1304663

Data sheet

wiper/scraper ring type
At the NBR
wiper/scraper ring inner ⌀ [mm]
8
wiper/scraper ring outer ⌀ [mm]
18
wiper/scraper ring width [mm]
5
