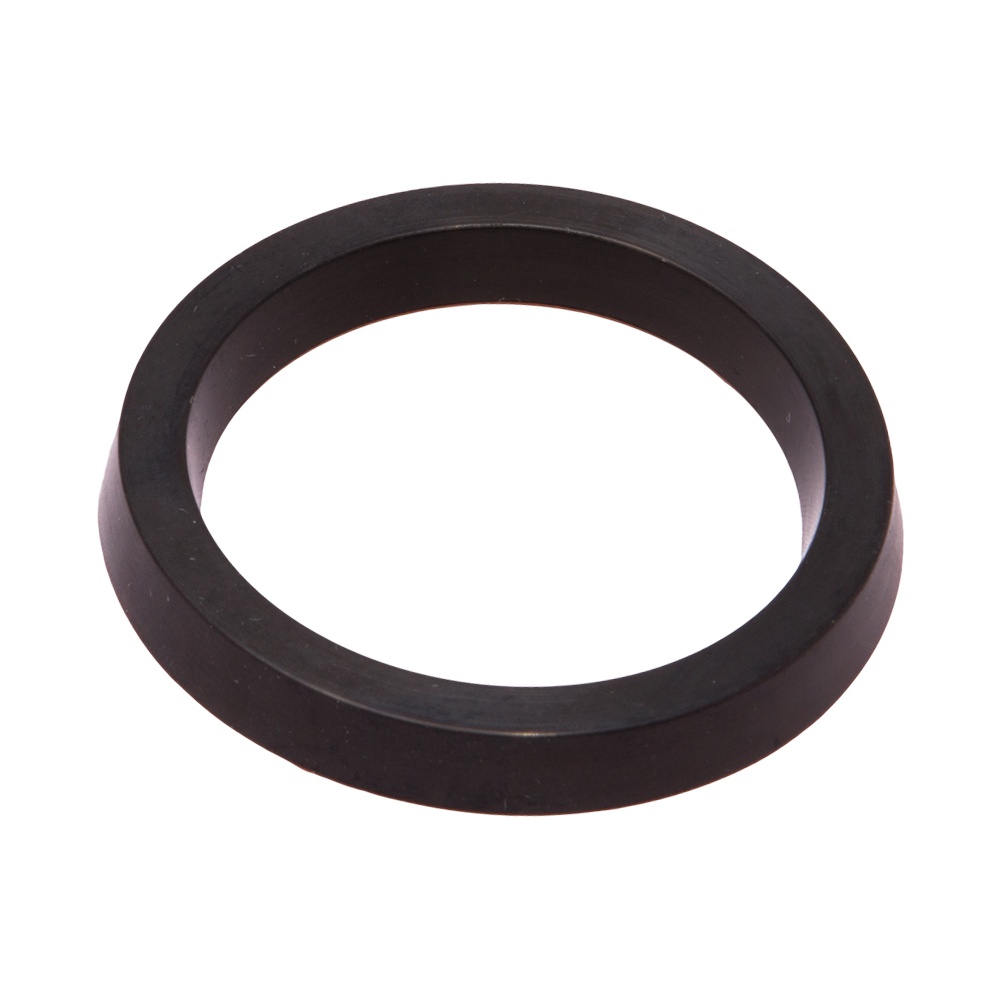

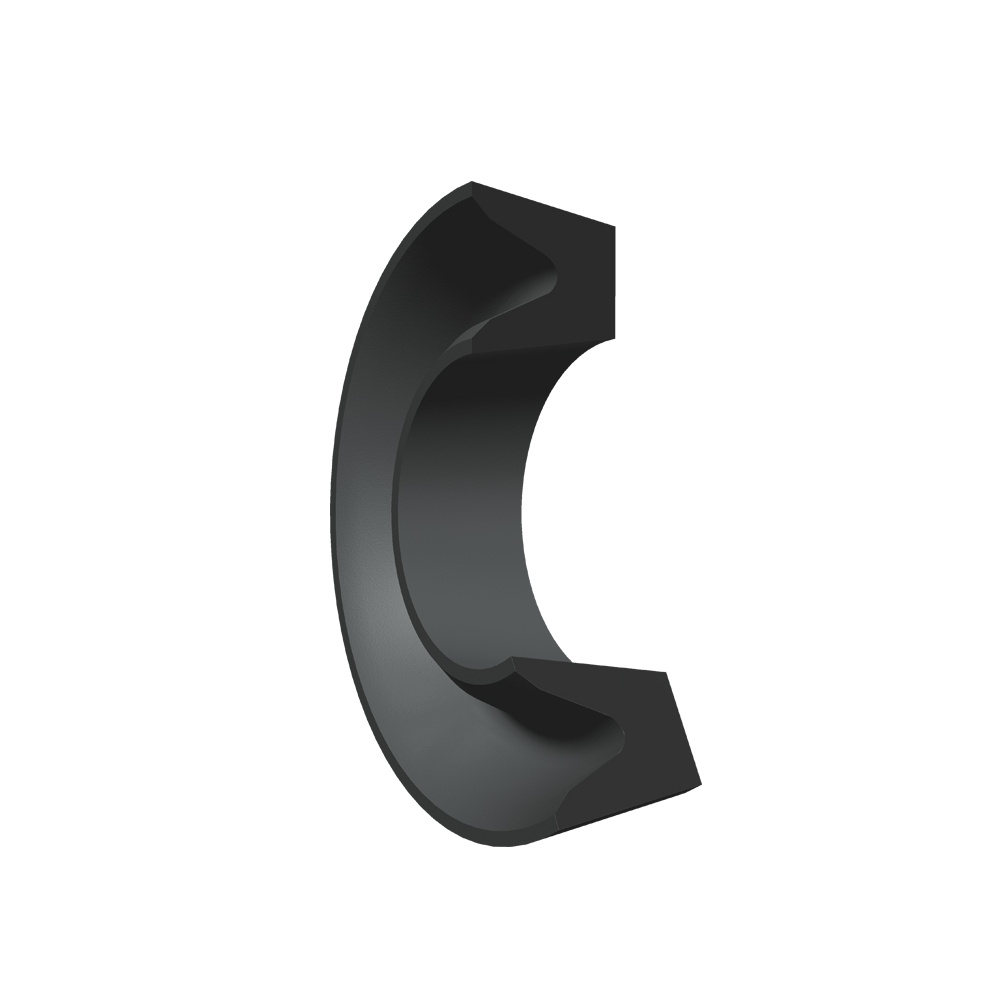

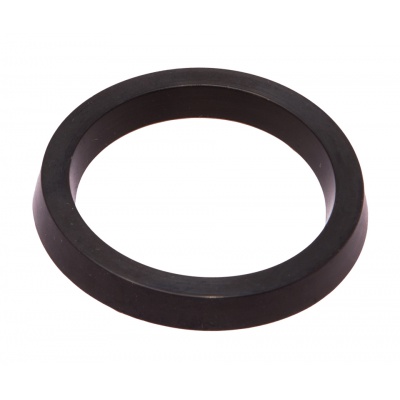

90x115x16 U-shaped NBR seal

Kč237.77
Tax included Kč196.50 without VAT
Quantity
Available to order

Technical parameters — Sleeve 90×115×16 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)90 mm
Outer diameter (D)115 mm
Width (B)16 mm
Max pressuredo 400 bar (40 MPa)
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…90x115x16, 90 x 115 x 16, 90,00x115,00x16,00, 90,00 x 115,00 x 16,00, 90-115-16, 90×115×16, 90.00x115.00x16.00, 90.00 x 115.00 x 16.00, 90*115*16, 90X115X16, 90 115 16, 90 * 115 * 16, 90 X 115 X 16, 90,00*115,00*16,00, 90,00X115,00X16,00, 90,00 115,00 16,00, 90,00 * 115,00 * 16,00, 90,00 X 115,00 X 16,00, 90.00*115.00*16.00, 90.00X115.00X16.00, 90.00 115.00 16.00, 90.00 * 115.00 * 16.00, 90.00 X 115.00 X 16.00, 90x115x16 mm, 90x115x16mm, 90 x 115 x 16 mm, 90 x 115 x 16mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS0700109

Data sheet

wiper/scraper ring type
NBR PN029260.3
wiper/scraper ring inner ⌀ [mm]
90
wiper/scraper ring outer ⌀ [mm]
115
wiper/scraper ring width [mm]
16
