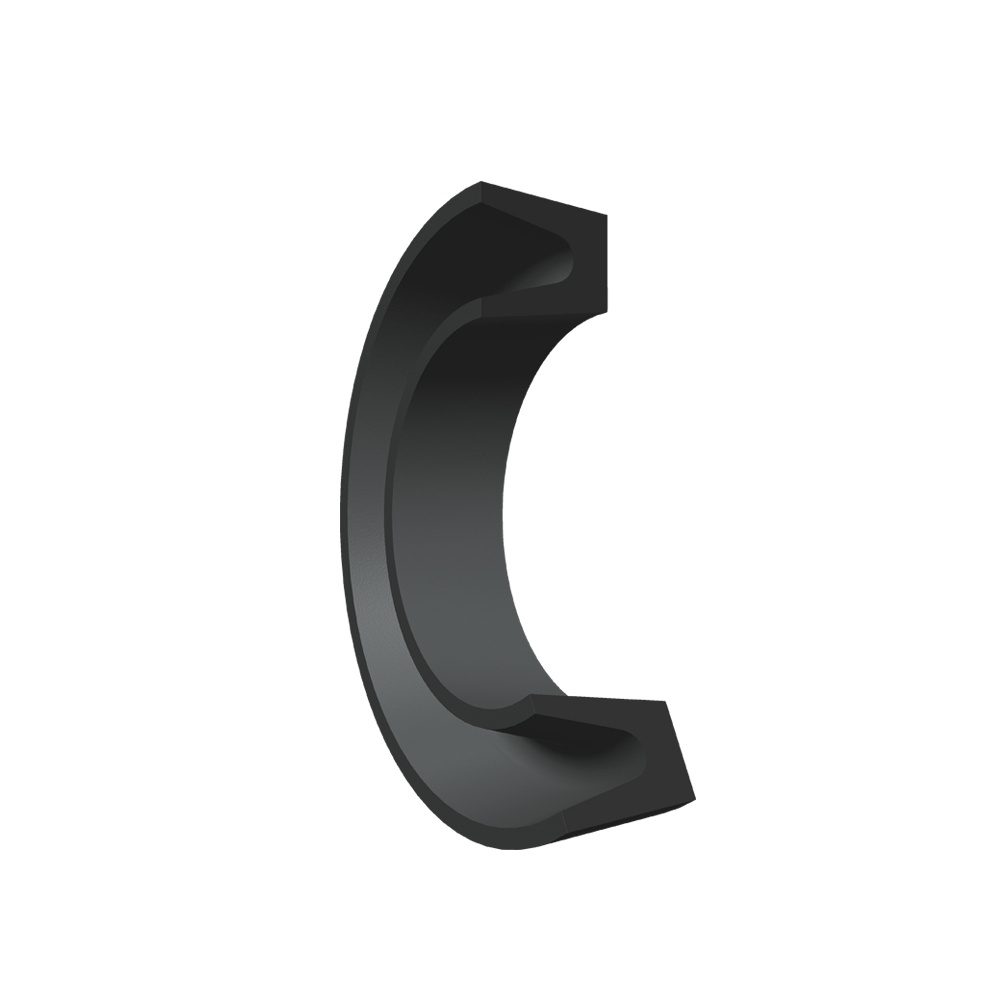

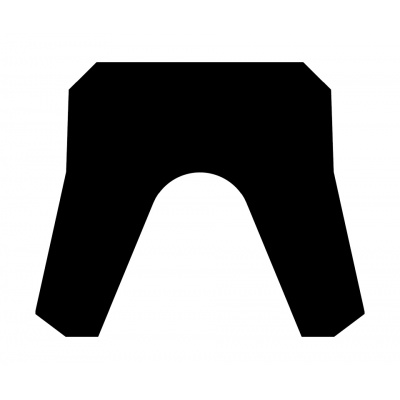

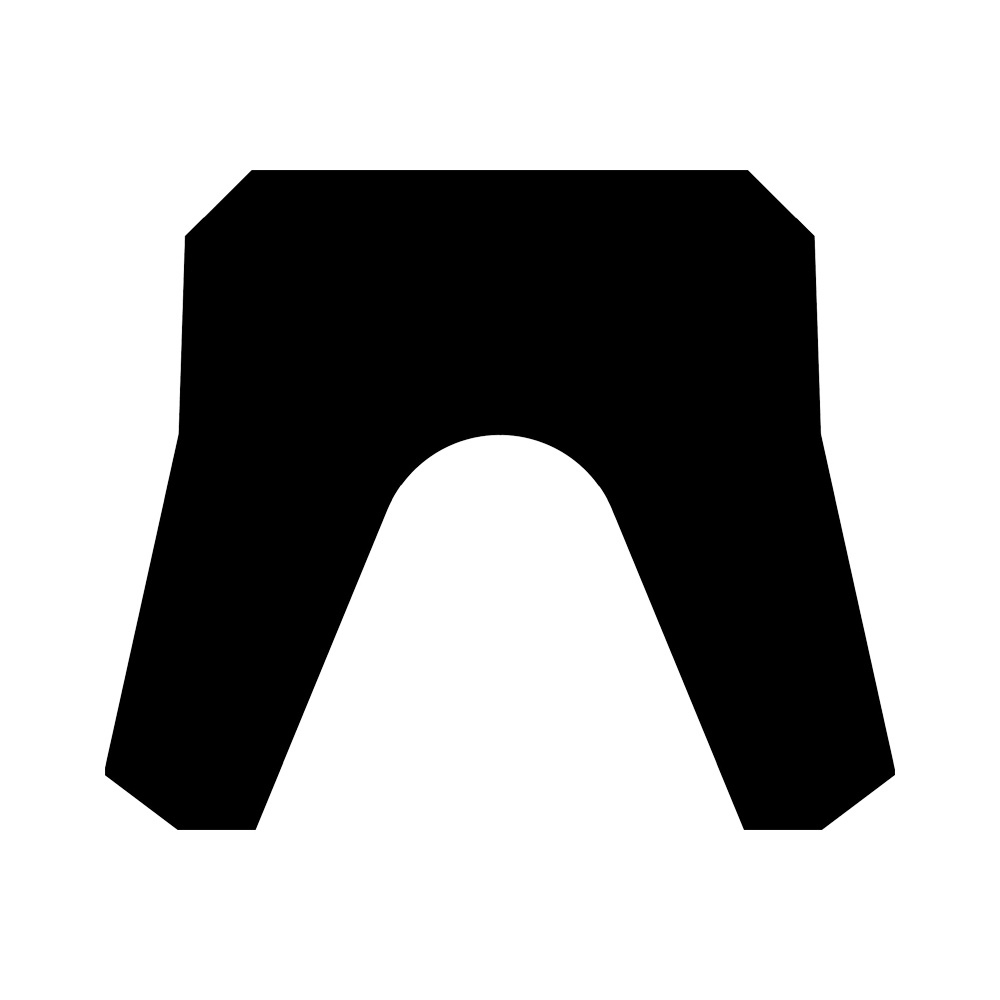

U-shaped NBR seal, 14x23x5 – available to order for 25 CZK

Kč24.65
Tax included Kč20.36 without VAT
Quantity
Available to order

Technical parameters — Sleeve 14×23×5 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)14 mm
Outer diameter (D)23 mm
Width (B)5 mm
Max pressuredo 40 MPa
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…14x23x5, 14 x 23 x 5, 14,00x23,00x5,00, 14,00 x 23,00 x 5,00, 14-23-5, 14×23×5, 14.00x23.00x5.00, 14.00 x 23.00 x 5.00, 14*23*5, 14X23X5, 14 23 5, 14 * 23 * 5, 14 X 23 X 5, 14,00*23,00*5,00, 14,00X23,00X5,00, 14,00 23,00 5,00, 14,00 * 23,00 * 5,00, 14,00 X 23,00 X 5,00, 14.00*23.00*5.00, 14.00X23.00X5.00, 14.00 23.00 5.00, 14.00 * 23.00 * 5.00, 14.00 X 23.00 X 5.00, 14x23x5 mm, 14x23x5mm, 14 x 23 x 5 mm, 14 x 23 x 5mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta.
TS1304664

Data sheet

wiper/scraper ring type
At the NBR
wiper/scraper ring inner ⌀ [mm]
14
wiper/scraper ring outer ⌀ [mm]
23
wiper/scraper ring width [mm]
5
