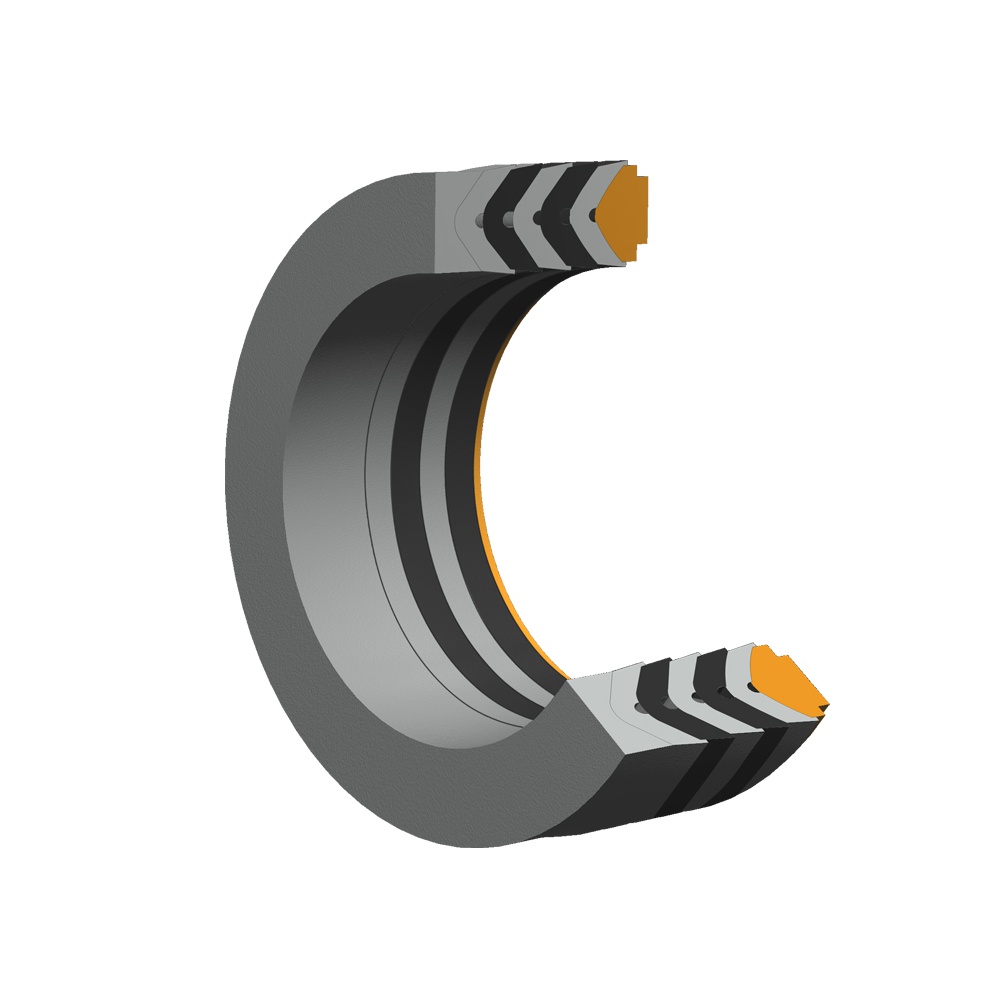

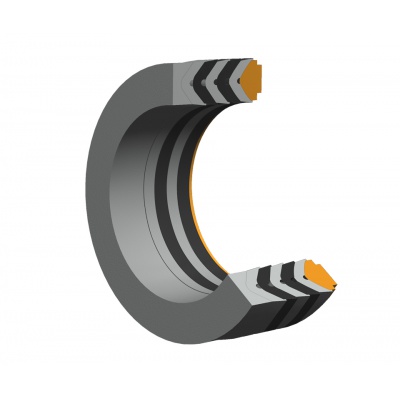

Seal 30x45x22.5 S13 fabric-rubber (30x45x22.5)

Kč630.11
Tax included Kč520.75 without VAT
Quantity
Product available for orders

Technical parameters — Sleeve 30×45×22,50 U NBR
Product typeU-manžeta — jednočinný píst
Operating temperature-40 až +100 °C
Inner diameter (d)30 mm
Outer diameter (D)45 mm
Width (B)22,50 mm
Max pressuredo 400 bar (40 MPa)
Max peripheral speeddo 0,5 m/s
MaterialNBR — nitril-butadien kaučuk
Resistanceminerální oleje, voda

Typical use: Hydraulika, pneumatika — pístní tyče a písty s jednočinným pohybem.

Frequently searched as…30x45x22,5, 30 x 45 x 22,5, 30,00x45,00x22,50, 30,00 x 45,00 x 22,50, 30-45-22,5, 30×45×22,5, 30x45x22.5, 30 x 45 x 22.5, 30.00x45.00x22.50, 30.00 x 45.00 x 22.50, 30-45-22.5, 30×45×22.5, 30*45*22,5, 30X45X22,5, 30 45 22,5, 30 * 45 * 22,5, 30 X 45 X 22,5, 30,00*45,00*22,50, 30,00X45,00X22,50, 30,00 45,00 22,50, 30,00 * 45,00 * 22,50, 30,00 X 45,00 X 22,50, 30*45*22.5, 30X45X22.5, 30 45 22.5, 30 * 45 * 22.5, 30 X 45 X 22.5, 30.00*45.00*22.50, 30.00X45.00X22.50, 30.00 45.00 22.50, 30.00 * 45.00 * 22.50, 30.00 X 45.00 X 22.50, 30x45x22,5 mm, 30x45x22,5mm, 30 x 45 x 22,5 mm, 30 x 45 x 22,5mm, manzeta, hydraulicka manzeta, pneumaticka manzeta, tesnici manzeta, textilpryz.
TS0600540

Data sheet

wiper/scraper ring type
S13
wiper/scraper ring inner ⌀ [mm]
30
wiper/scraper ring outer ⌀ [mm]
45
wiper/scraper ring width [mm]
22.5
