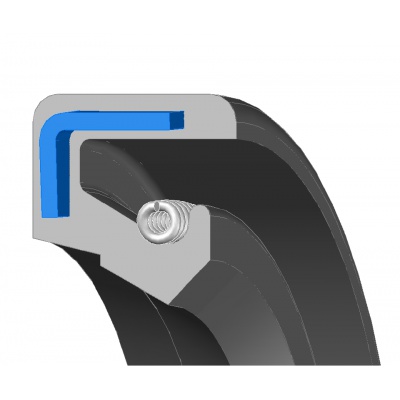

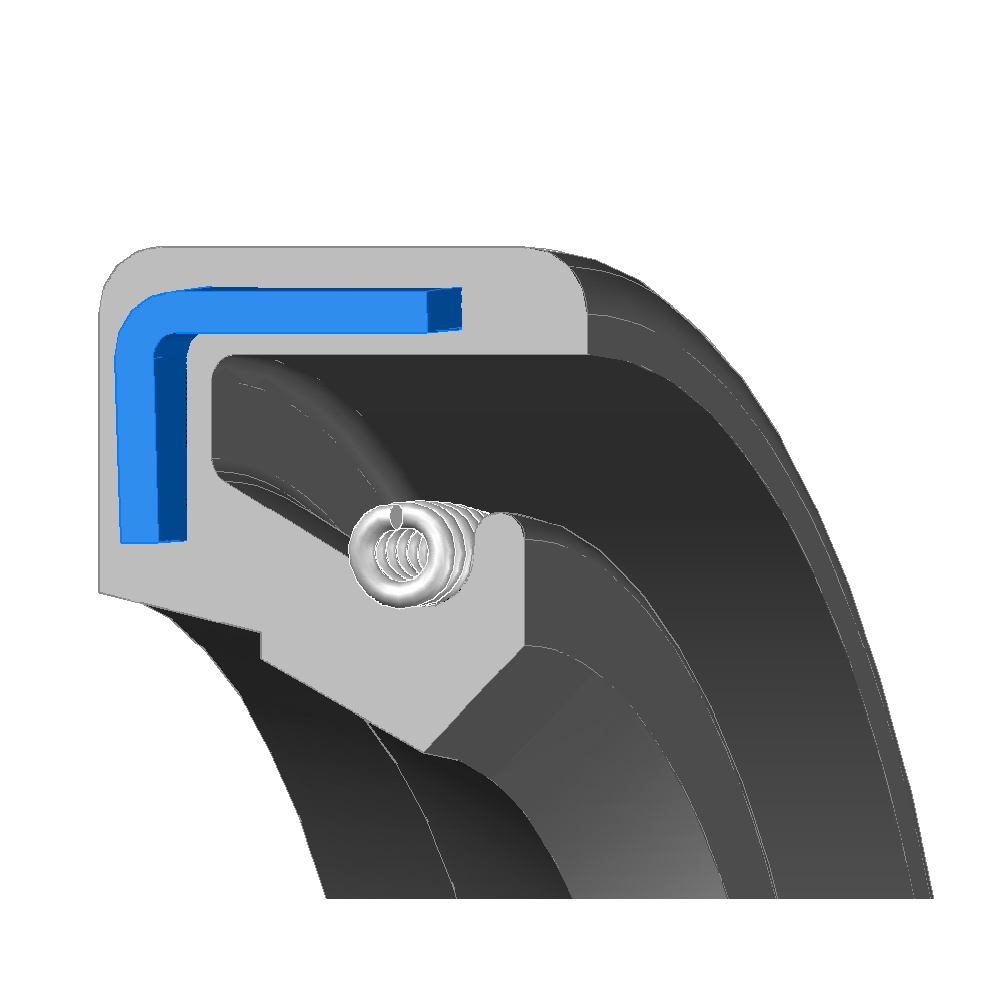

34x46x10 WA oil seal

Kč60.02
Tax included Kč49.60 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 34×46×10 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)34 mm
Outer diameter (D)46 mm
Width (B)10 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…34x46x10, 34 x 46 x 10, 34,00x46,00x10,00, 34,00 x 46,00 x 10,00, 34-46-10, 34×46×10, 34.00x46.00x10.00, 34.00 x 46.00 x 10.00, 34*46*10, 34X46X10, 34 46 10, 34 * 46 * 10, 34 X 46 X 10, 34,00*46,00*10,00, 34,00X46,00X10,00, 34,00 46,00 10,00, 34,00 * 46,00 * 10,00, 34,00 X 46,00 X 10,00, 34.00*46.00*10.00, 34.00X46.00X10.00, 34.00 46.00 10.00, 34.00 * 46.00 * 10.00, 34.00 X 46.00 X 10.00, 34x46x10 mm, 34x46x10mm, 34 x 46 x 10 mm, 34 x 46 x 10mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS1703349

Data sheet

oil seal outer ⌀ [mm]
46
oil seal width [mm]
10
oil seal inner ⌀ [mm]
34

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
