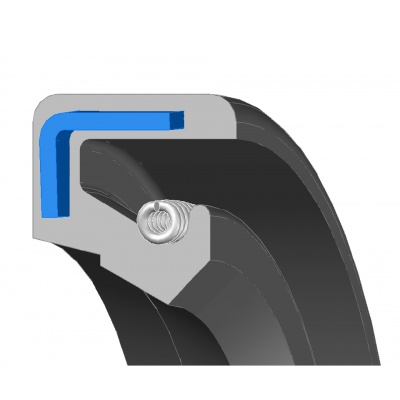

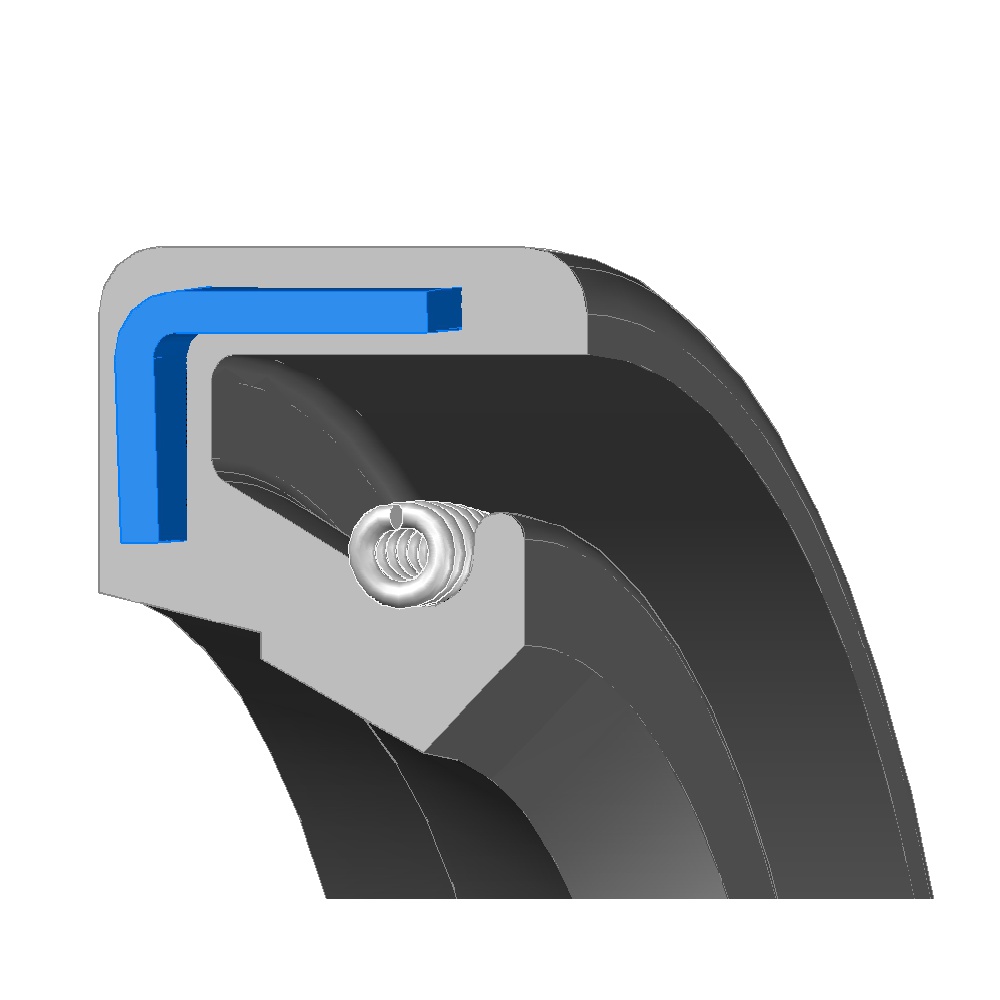

16x30x10 WA oil seal

Kč54.58
Tax included Kč45.10 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 16×30×10 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)16 mm
Outer diameter (D)30 mm
Width (B)10 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…16x30x10, 16 x 30 x 10, 16,00x30,00x10,00, 16,00 x 30,00 x 10,00, 16-30-10, 16×30×10, 16.00x30.00x10.00, 16.00 x 30.00 x 10.00, 16*30*10, 16X30X10, 16 30 10, 16 * 30 * 10, 16 X 30 X 10, 16,00*30,00*10,00, 16,00X30,00X10,00, 16,00 30,00 10,00, 16,00 * 30,00 * 10,00, 16,00 X 30,00 X 10,00, 16.00*30.00*10.00, 16.00X30.00X10.00, 16.00 30.00 10.00, 16.00 * 30.00 * 10.00, 16.00 X 30.00 X 10.00, 16x30x10 mm, 16x30x10mm, 16 x 30 x 10 mm, 16 x 30 x 10mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS1500802

Data sheet

oil seal outer ⌀ [mm]
30
oil seal width [mm]
10
oil seal inner ⌀ [mm]
16

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
