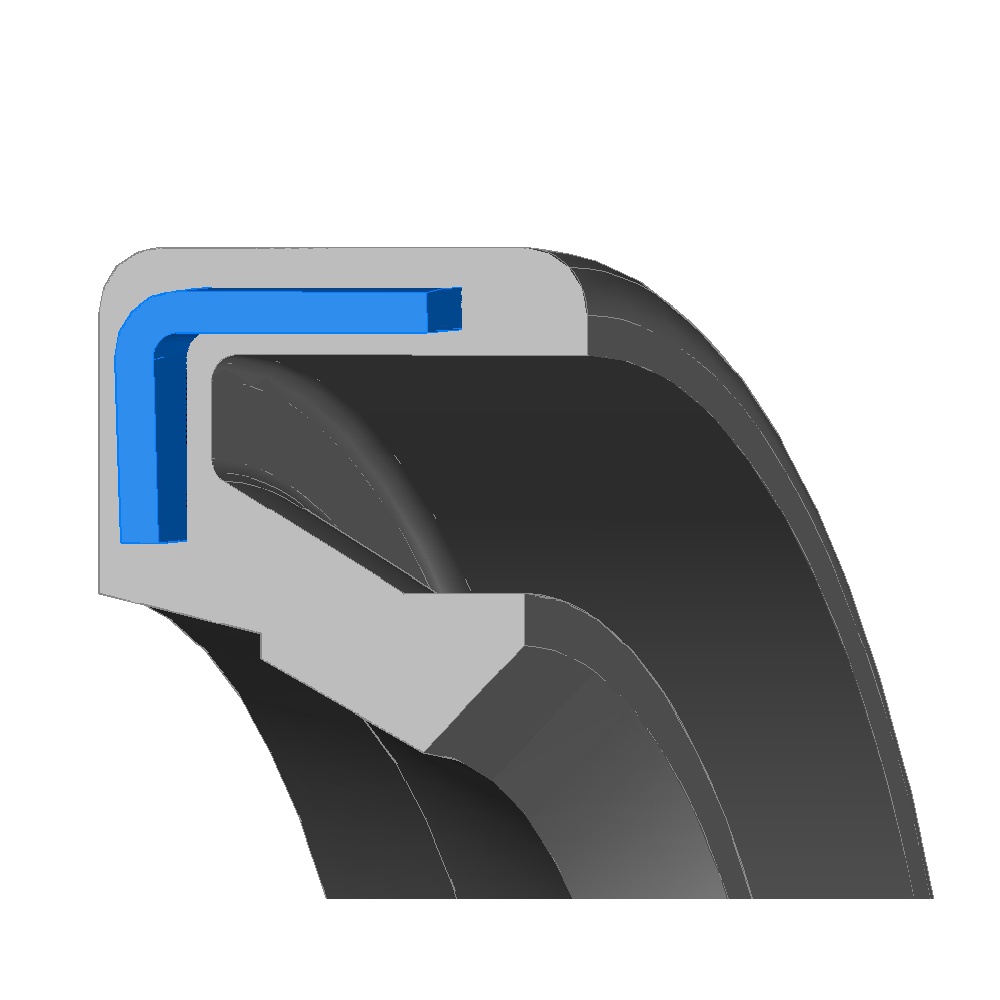

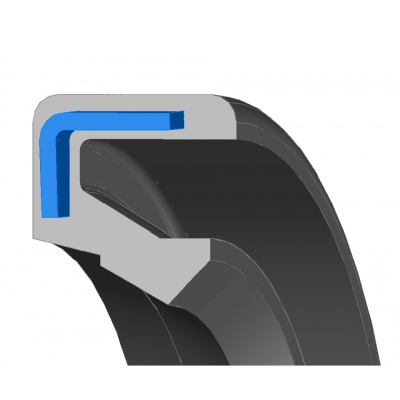

40x47x5 WAO oil seal

Kč70.79
Tax included Kč58.50 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 40×47×5 WAO
Product typeWAO — bez prachovky a bez pružiny
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)40 mm
Outer diameter (D)47 mm
Width (B)5 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…40x47x5, 40 x 47 x 5, 40,00x47,00x5,00, 40,00 x 47,00 x 5,00, 40-47-5, 40×47×5, 40.00x47.00x5.00, 40.00 x 47.00 x 5.00, 40*47*5, 40X47X5, 40 47 5, 40 * 47 * 5, 40 X 47 X 5, 40,00*47,00*5,00, 40,00X47,00X5,00, 40,00 47,00 5,00, 40,00 * 47,00 * 5,00, 40,00 X 47,00 X 5,00, 40.00*47.00*5.00, 40.00X47.00X5.00, 40.00 47.00 5.00, 40.00 * 47.00 * 5.00, 40.00 X 47.00 X 5.00, 40x47x5 mm, 40x47x5mm, 40 x 47 x 5 mm, 40 x 47 x 5mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS1600864

Data sheet

oil seal outer ⌀ [mm]
47
oil seal width [mm]
5
oil seal inner ⌀ [mm]
40

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
