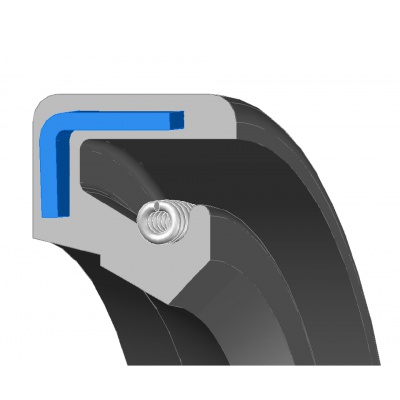

17x35x5 WA oil seal

Kč41.99
Tax included Kč34.70 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 17×35×5 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)17 mm
Outer diameter (D)35 mm
Width (B)5 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…17x35x5, 17 x 35 x 5, 17,00x35,00x5,00, 17,00 x 35,00 x 5,00, 17-35-5, 17×35×5, 17.00x35.00x5.00, 17.00 x 35.00 x 5.00, 17*35*5, 17X35X5, 17 35 5, 17 * 35 * 5, 17 X 35 X 5, 17,00*35,00*5,00, 17,00X35,00X5,00, 17,00 35,00 5,00, 17,00 * 35,00 * 5,00, 17,00 X 35,00 X 5,00, 17.00*35.00*5.00, 17.00X35.00X5.00, 17.00 35.00 5.00, 17.00 * 35.00 * 5.00, 17.00 X 35.00 X 5.00, 17x35x5 mm, 17x35x5mm, 17 x 35 x 5 mm, 17 x 35 x 5mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2100861

Data sheet

oil seal outer ⌀ [mm]
35
oil seal width [mm]
5
oil seal inner ⌀ [mm]
17

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.
