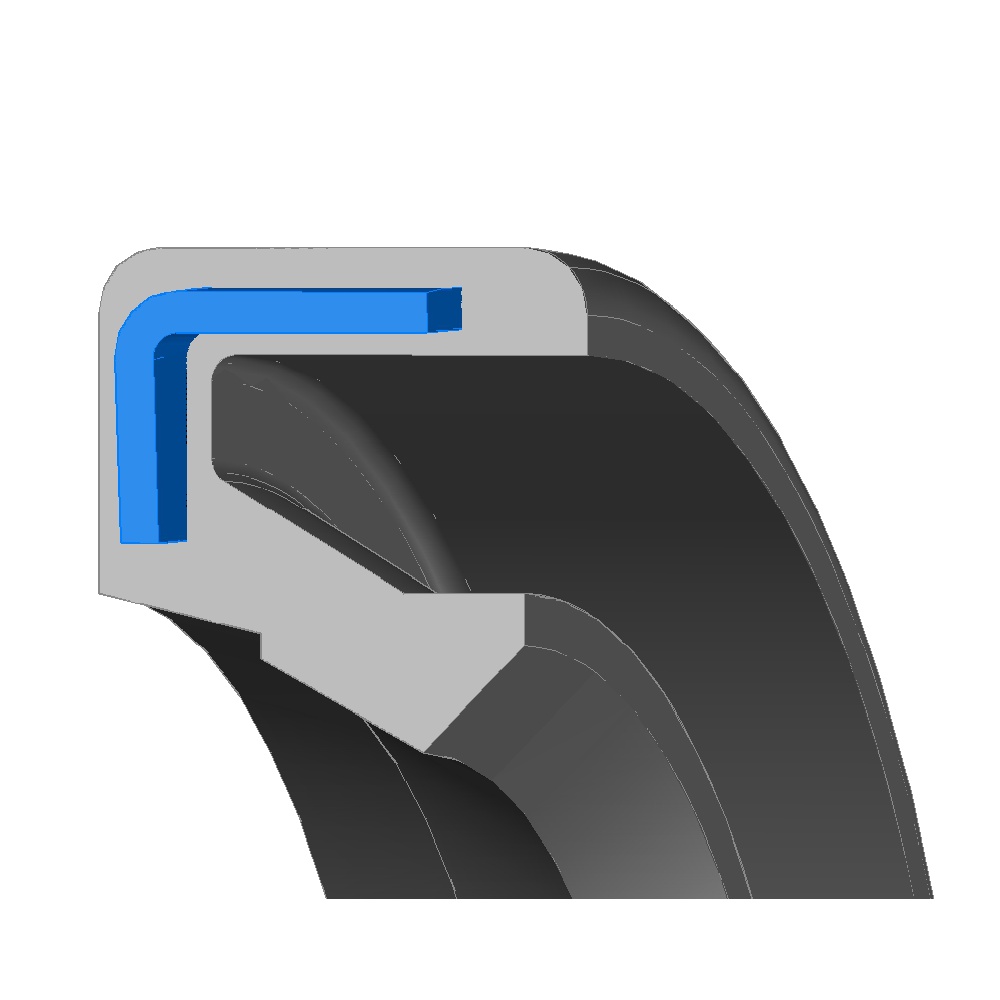

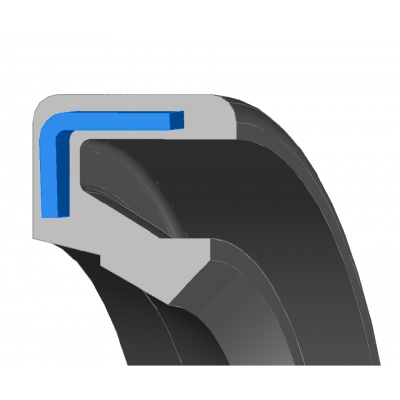

38x48x4 WAO oil seal

Kč69.10
Tax included Kč57.10 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 38×48×4 WAO
Product typeWAO — bez prachovky a bez pružiny
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)38 mm
Outer diameter (D)48 mm
Width (B)4 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…38x48x4, 38 x 48 x 4, 38,00x48,00x4,00, 38,00 x 48,00 x 4,00, 38-48-4, 38×48×4, 38.00x48.00x4.00, 38.00 x 48.00 x 4.00, 38*48*4, 38X48X4, 38 48 4, 38 * 48 * 4, 38 X 48 X 4, 38,00*48,00*4,00, 38,00X48,00X4,00, 38,00 48,00 4,00, 38,00 * 48,00 * 4,00, 38,00 X 48,00 X 4,00, 38.00*48.00*4.00, 38.00X48.00X4.00, 38.00 48.00 4.00, 38.00 * 48.00 * 4.00, 38.00 X 48.00 X 4.00, 38x48x4 mm, 38x48x4mm, 38 x 48 x 4 mm, 38 x 48 x 4mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2100466

Data sheet

oil seal outer ⌀ [mm]
48
oil seal width [mm]
4
oil seal inner ⌀ [mm]
38

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
