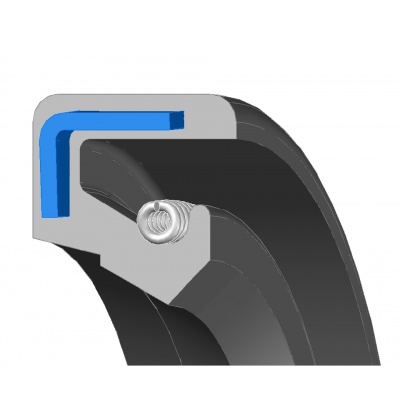

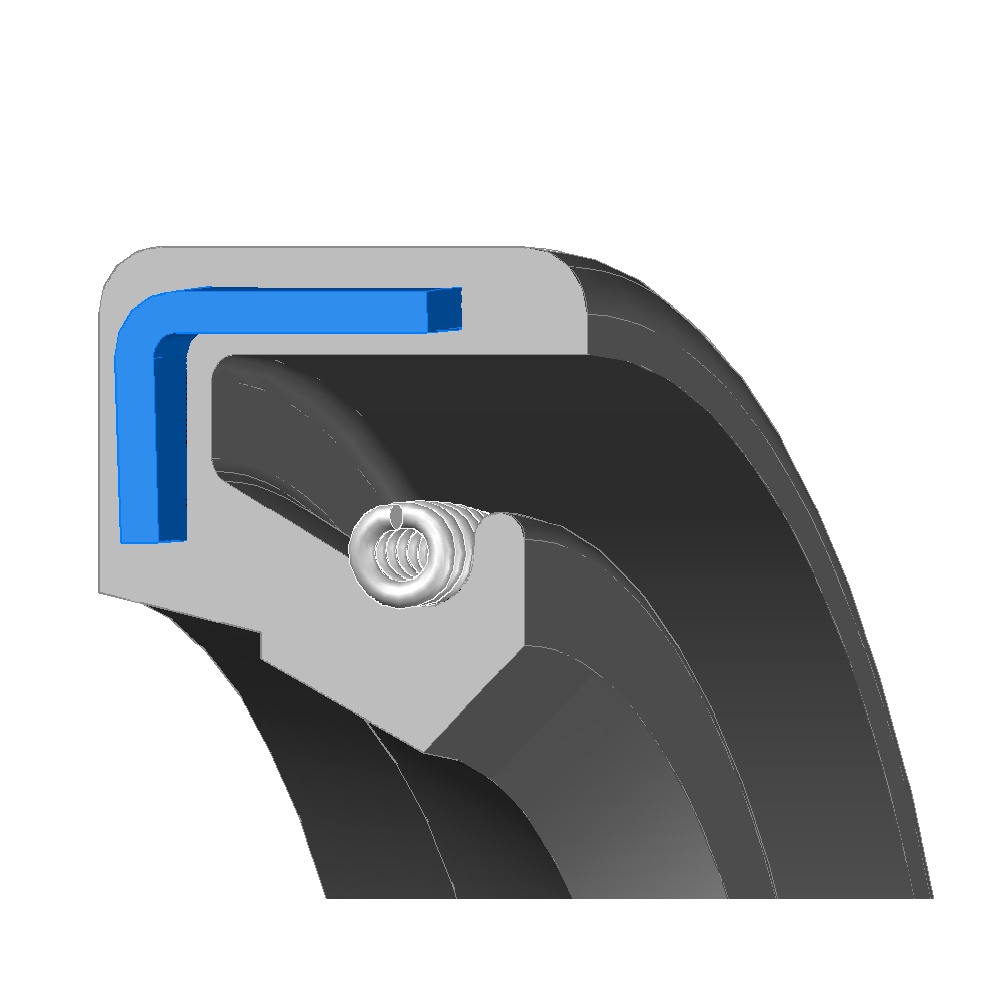

10x30x4 WA oil seal

Kč103.34
Tax included Kč85.40 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 10×30×4 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)10 mm
Outer diameter (D)30 mm
Width (B)4 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…10x30x4, 10 x 30 x 4, 10,00x30,00x4,00, 10,00 x 30,00 x 4,00, 10-30-4, 10×30×4, 10.00x30.00x4.00, 10.00 x 30.00 x 4.00, 10*30*4, 10X30X4, 10 30 4, 10 * 30 * 4, 10 X 30 X 4, 10,00*30,00*4,00, 10,00X30,00X4,00, 10,00 30,00 4,00, 10,00 * 30,00 * 4,00, 10,00 X 30,00 X 4,00, 10.00*30.00*4.00, 10.00X30.00X4.00, 10.00 30.00 4.00, 10.00 * 30.00 * 4.00, 10.00 X 30.00 X 4.00, 10x30x4 mm, 10x30x4mm, 10 x 30 x 4 mm, 10 x 30 x 4mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2200471

Data sheet

oil seal outer ⌀ [mm]
30
oil seal width [mm]
4
oil seal inner ⌀ [mm]
10

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
