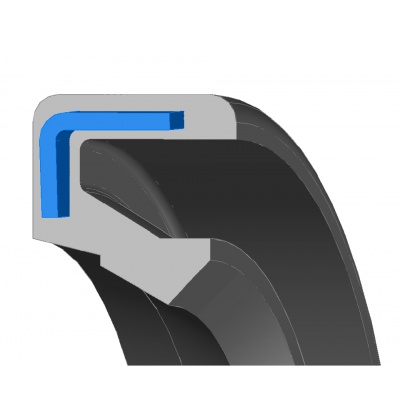

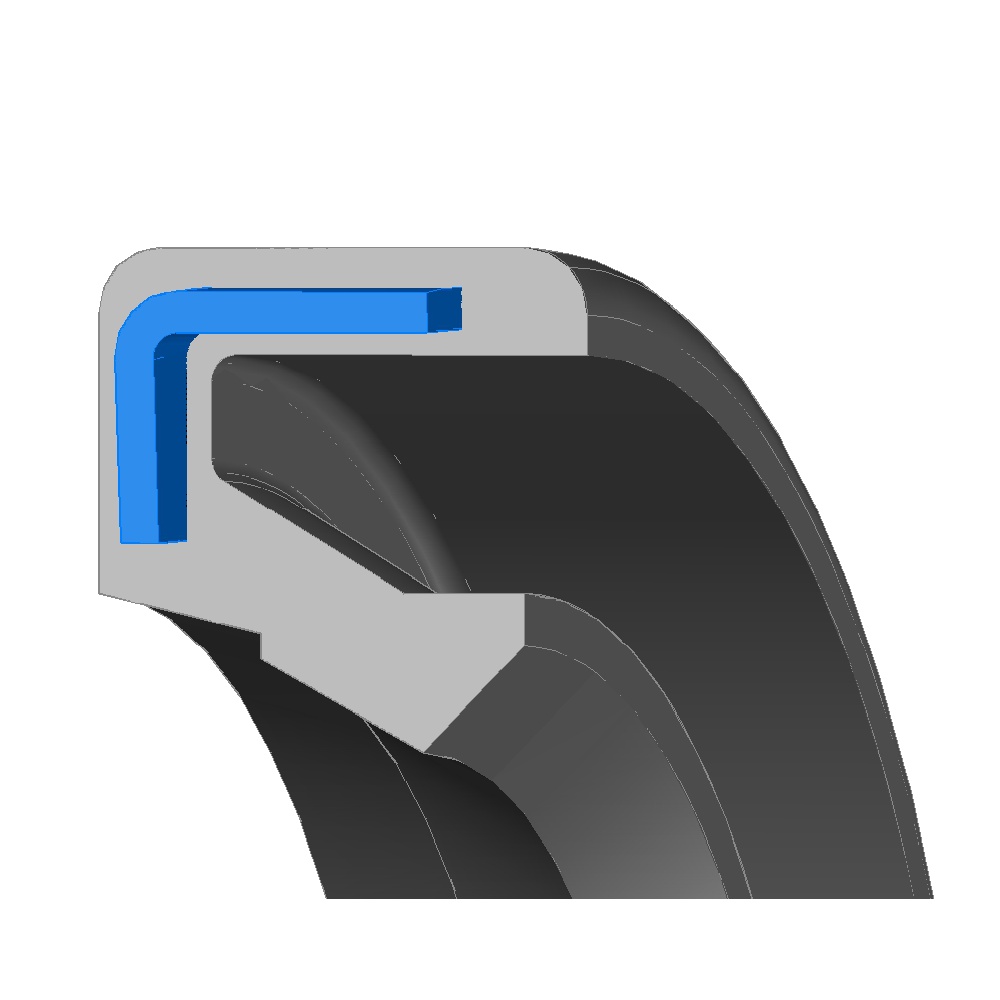

50x60x4 WAO oil seal

Kč132.38
Tax included Kč109.40 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 50×60×4 WAO
Product typeWAO — bez prachovky a bez pružiny
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)50 mm
Outer diameter (D)60 mm
Width (B)4 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…50x60x4, 50 x 60 x 4, 50,00x60,00x4,00, 50,00 x 60,00 x 4,00, 50-60-4, 50×60×4, 50.00x60.00x4.00, 50.00 x 60.00 x 4.00, 50*60*4, 50X60X4, 50 60 4, 50 * 60 * 4, 50 X 60 X 4, 50,00*60,00*4,00, 50,00X60,00X4,00, 50,00 60,00 4,00, 50,00 * 60,00 * 4,00, 50,00 X 60,00 X 4,00, 50.00*60.00*4.00, 50.00X60.00X4.00, 50.00 60.00 4.00, 50.00 * 60.00 * 4.00, 50.00 X 60.00 X 4.00, 50x60x4 mm, 50x60x4mm, 50 x 60 x 4 mm, 50 x 60 x 4mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2202173

Data sheet

oil seal outer ⌀ [mm]
60
oil seal width [mm]
4
oil seal inner ⌀ [mm]
50

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
