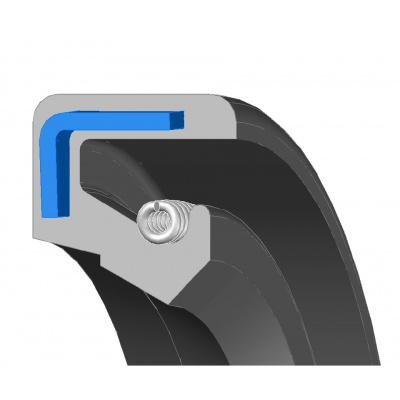

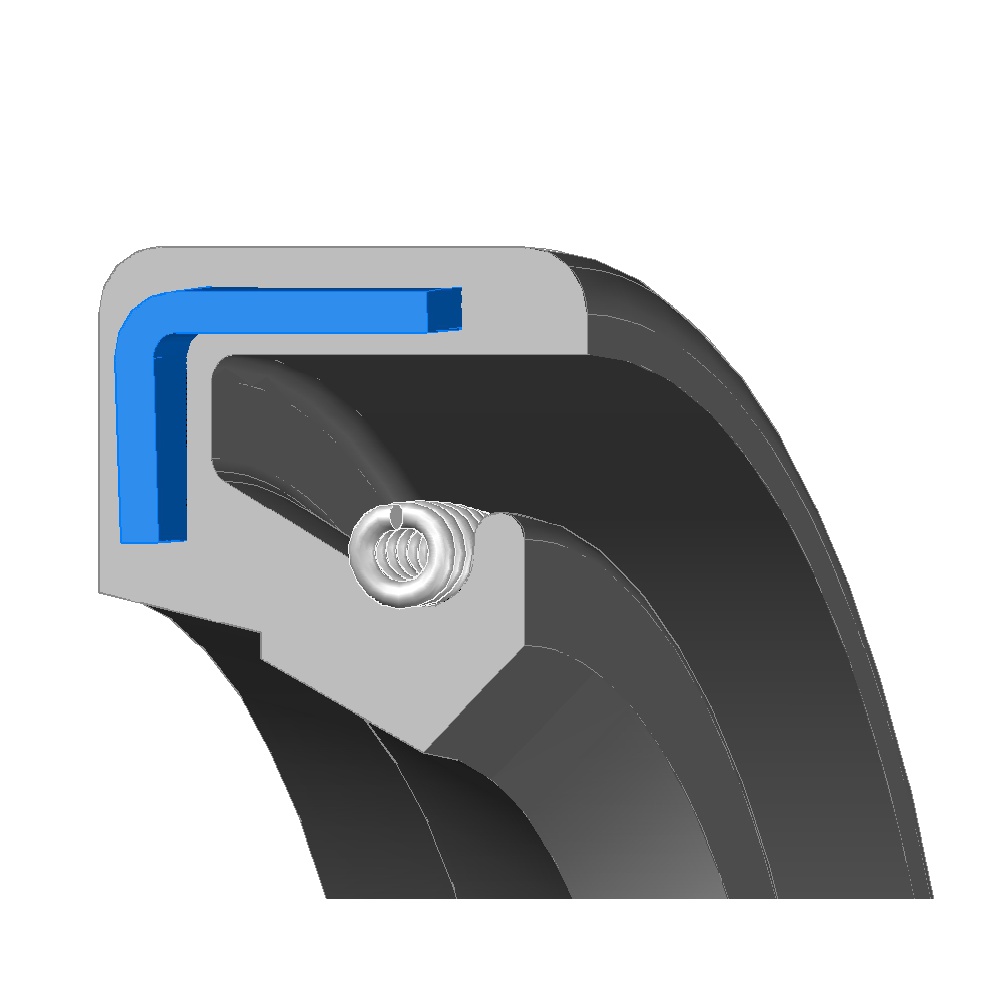

77x95x10 WA oil seal

Kč164.93
Tax included Kč136.30 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 77×95×10 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)77 mm
Outer diameter (D)95 mm
Width (B)10 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…77x95x10, 77 x 95 x 10, 77,00x95,00x10,00, 77,00 x 95,00 x 10,00, 77-95-10, 77×95×10, 77.00x95.00x10.00, 77.00 x 95.00 x 10.00, 77*95*10, 77X95X10, 77 95 10, 77 * 95 * 10, 77 X 95 X 10, 77,00*95,00*10,00, 77,00X95,00X10,00, 77,00 95,00 10,00, 77,00 * 95,00 * 10,00, 77,00 X 95,00 X 10,00, 77.00*95.00*10.00, 77.00X95.00X10.00, 77.00 95.00 10.00, 77.00 * 95.00 * 10.00, 77.00 X 95.00 X 10.00, 77x95x10 mm, 77x95x10mm, 77 x 95 x 10 mm, 77 x 95 x 10mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2301325

Data sheet

oil seal outer ⌀ [mm]
95
oil seal width [mm]
10

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
