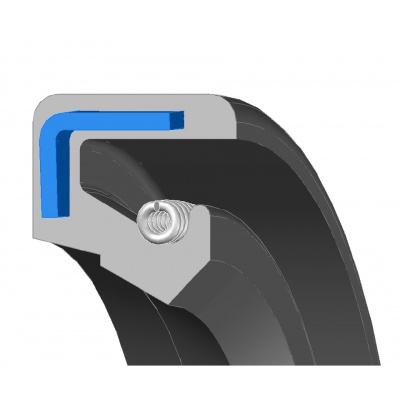

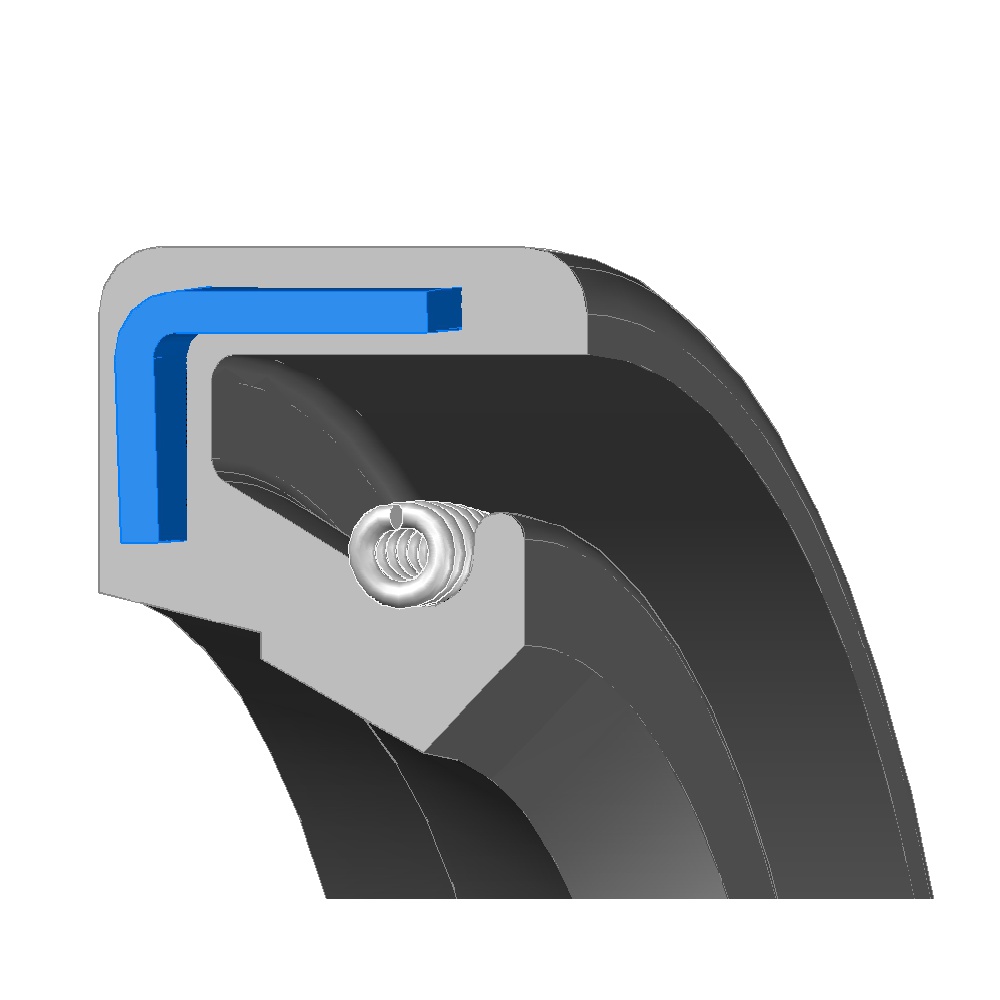

12.5 x 22 x 5 WA oil seal

Kč30.86
Tax included Kč25.50 without VAT
Quantity
Product available for orders

Technical parameters — Oil seal 12,5×22×5 WA
Product typeWA — single lip bez prachovky
Operating temperature-40 až +100 °C (krátkodobě +120 °C)
Inner diameter (d)12,5 mm
Outer diameter (D)22 mm
Width (B)5 mm
Max pressuredo 0,5 bar (0,05 MPa)
Max peripheral speeddo 14 m/s (závisí na rozměru)
MaterialNBR — nitril-butadien kaučuk
Suitable mediaminerální oleje, hydraulické kapaliny, voda, paliva, vzduch
Resistanceoleje, otěr, mechanické namáhání
Frequently searched as…12,5x22x5, 12,5 x 22 x 5, 12,50x22,00x5,00, 12,50 x 22,00 x 5,00, 12,5-22-5, 12,5×22×5, 12.5x22x5, 12.5 x 22 x 5, 12.50x22.00x5.00, 12.50 x 22.00 x 5.00, 12.5-22-5, 12.5×22×5, 12,5*22*5, 12,5X22X5, 12,5 22 5, 12,5 * 22 * 5, 12,5 X 22 X 5, 12,50*22,00*5,00, 12,50X22,00X5,00, 12,50 22,00 5,00, 12,50 * 22,00 * 5,00, 12,50 X 22,00 X 5,00, 12.5*22*5, 12.5X22X5, 12.5 22 5, 12.5 * 22 * 5, 12.5 X 22 X 5, 12.50*22.00*5.00, 12.50X22.00X5.00, 12.50 22.00 5.00, 12.50 * 22.00 * 5.00, 12.50 X 22.00 X 5.00, 12,5x22x5 mm, 12,5x22x5mm, 12,5 x 22 x 5 mm, 12,5 x 22 x 5mm, gufero, gufero hridelove, simmerring, oil seal, tesnici krouzek.
TS2301434

Data sheet

oil seal outer ⌀ [mm]
22
oil seal width [mm]
5

Catalogue – Shaft seals

Rotary shaft seal (oil seal) datasheet: construction, materials (NBR, FPM/Viton, silicone, PTFE), temperature and chemical resistance, hardness and order designation. PDF download.

pdf
Download
