Řemen ozubený D8M 1800 šíře 25 mm S-STD

STD TIMING BELTS – D S8M
Neoprene STD (Super Torque Drive) belts have a parabolic tooth shape with quiet and precise engagement. Thanks to their precise timing, STD belts are used in all kinds of applications where accurate pulley timing and solid power transmission are required. They transmit higher power than standard HTD belts.

STD belts are applied in operations requiring precise timing and solid power transmission — for example, timing drives in internal combustion engines, timers, lathes, milling machines, textile machines, compressors, mixers, etc.
Standard types supplied: S4.5M, S5M, S8M
Standard double-sided types supplied: D S8M

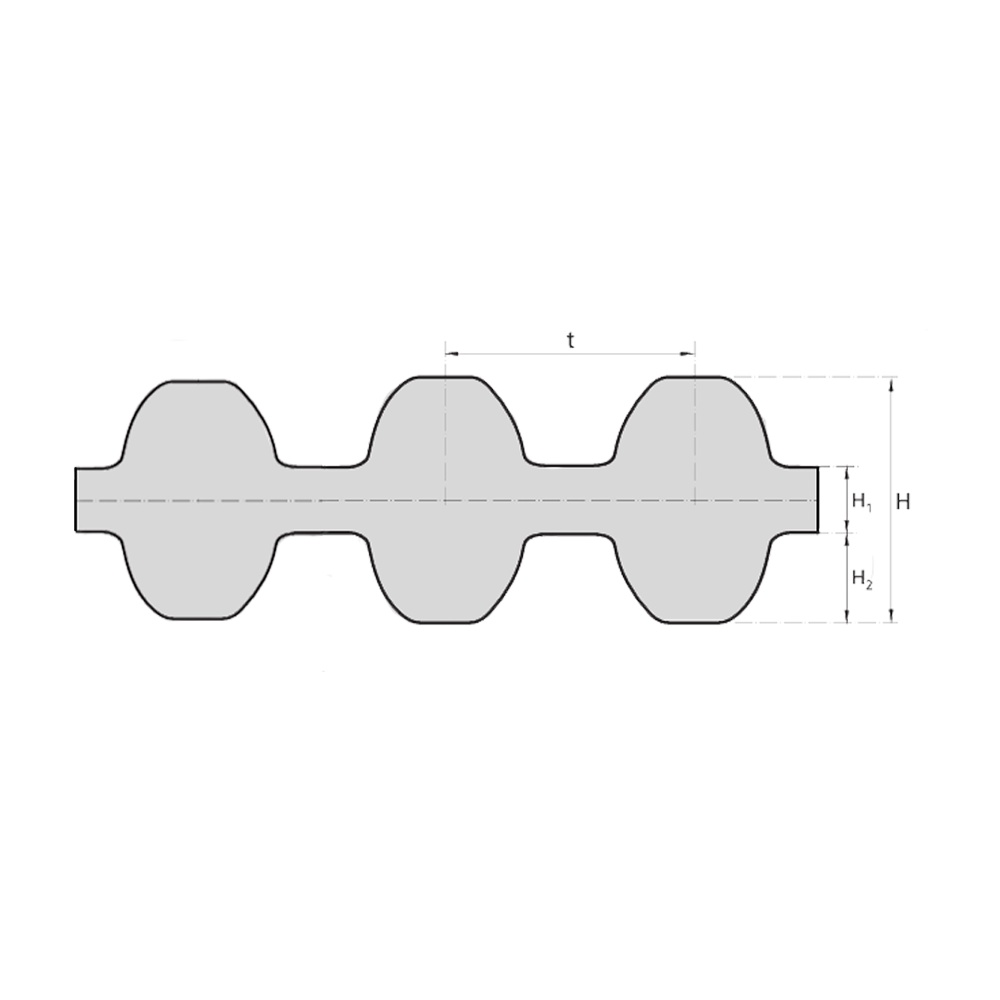

Dimensions – STD – D S8M
t = 8 mm Tooth pitch
H1 = 2.10 mm Body height
H2 = 3.00 mm Tooth height
H = 8.1 mm Total height
Technical delivery terms and lead-time information on tel: +420 270 003 622
