Rukáv ozubený ZR XL 160/cena za 1mm

CTB TIMING SLEEVES – ZR-XL
Inch-pitch CTB timing sleeves are used as semi-finished products for manufacturing specified belts. CTB timing belts, sometimes also designated as ZR, have trapezoidal teeth. They are mainly used in older industrial applications, or where an economical solution is required for drives with standard or lower power-transmission demands. The belts are oil- and ozone-resistant. They are not antistatic.
Standard profiles supplied:
CTB (neoprene) MXL, XL, L, H, HX, XXH
CTB (polyurethane) MXL, XL, L, H

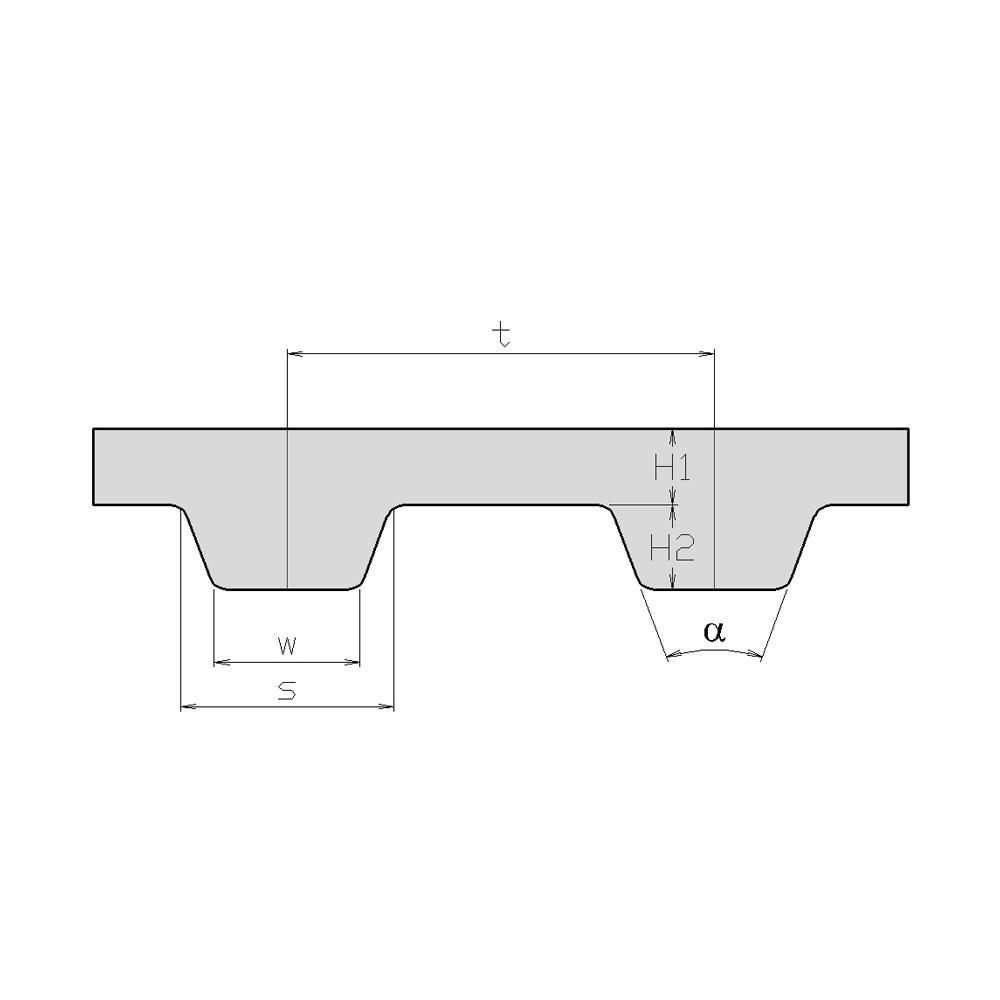

Dimensions/parameters of the XL profile:
α = 50°
t = 5.08 mm Tooth pitch
H1 = 1.02 mm Body height
H2 = 1.27 mm Tooth height
H = 2.29 mm Total height
S = 2.57 mm Tooth base

Standard widths:
Code 025 = 6.350 mm = 1/4"
Code 031 = 7.940 mm = 5/16"
Code 037 = 9.530 mm = 3/8"
Code 050 = 12.70 mm = 1/2"
Code 075 = 19.05 mm = 3/4"
