Strongbelt 11Mx825 La V-belt

Special Profiles – Polyurethane 60° - 11M
Polyurethane 60° belts are designed for use on high-speed machinery and tools (medical equipment, textile machinery, hand and hobby tools, machine tools, etc.). Good tension distribution is ensured by the 60° flank angle. They are ideal for use in confined spaces and at high peripheral speeds. The belts are resistant to excessive wear and ozone. The upper transverse ribbed layer ensures better stability in the pulleys.

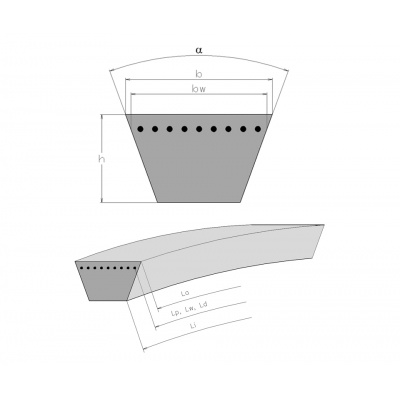

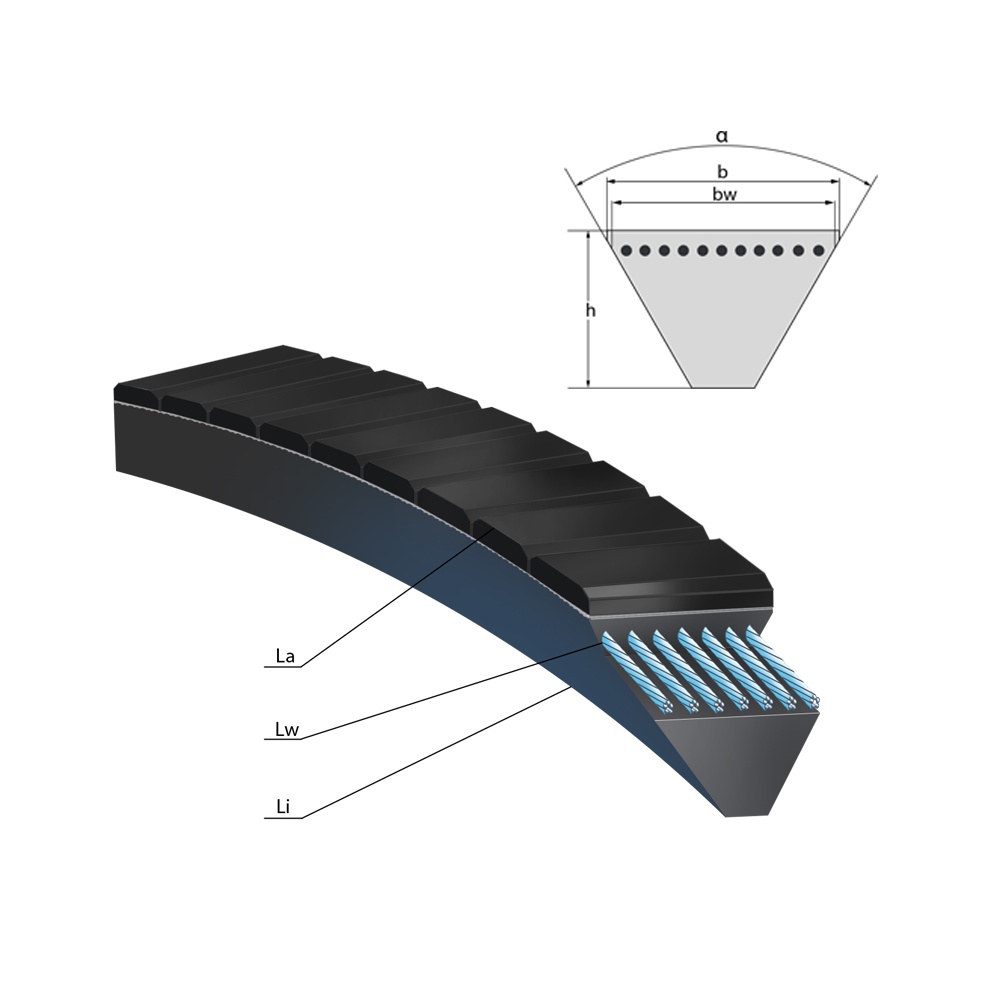

Parameters for identifying the belt’s dimensions and type.
La Outer length (circumference).
Li Internal length (circumference).
Lw=Lp=Ld Calculated length. Measured along the circumference of the neutral fibres, which retain the same length when the belt is bent (approximately at 2/3 of the belt’s height).

b = 11 mm Width of the outer base of the belt.
h = 7.1 mm Height of the belt.
alpha; = 60° Angle formed by the sides of the belt, measured on a straight section whilst the belt is under tension.
