Řemen klínový Rubena 12,5x1018 La SPA

NARROW COATED V-BELTS SPA/12.5 (12.7)
V-belts are the most commonly used component in mechanical transmission systems for transferring rotational motion – and thus mechanical energy – from one shaft to another. Their applications range from small domestic appliances, through compressors, blowers and production lines, to the drives of power units in motor vehicles, machinery, agriculture, etc.
The basic range of coated V-belts is complemented by a narrow profile (SPZ, SPA, SPB and SPC), which is based on and replaces the classic cross-sections Z/10, A/13, B/17 and C/22. Compared to the classic profile, the narrow profile transmits up to 100% more power.

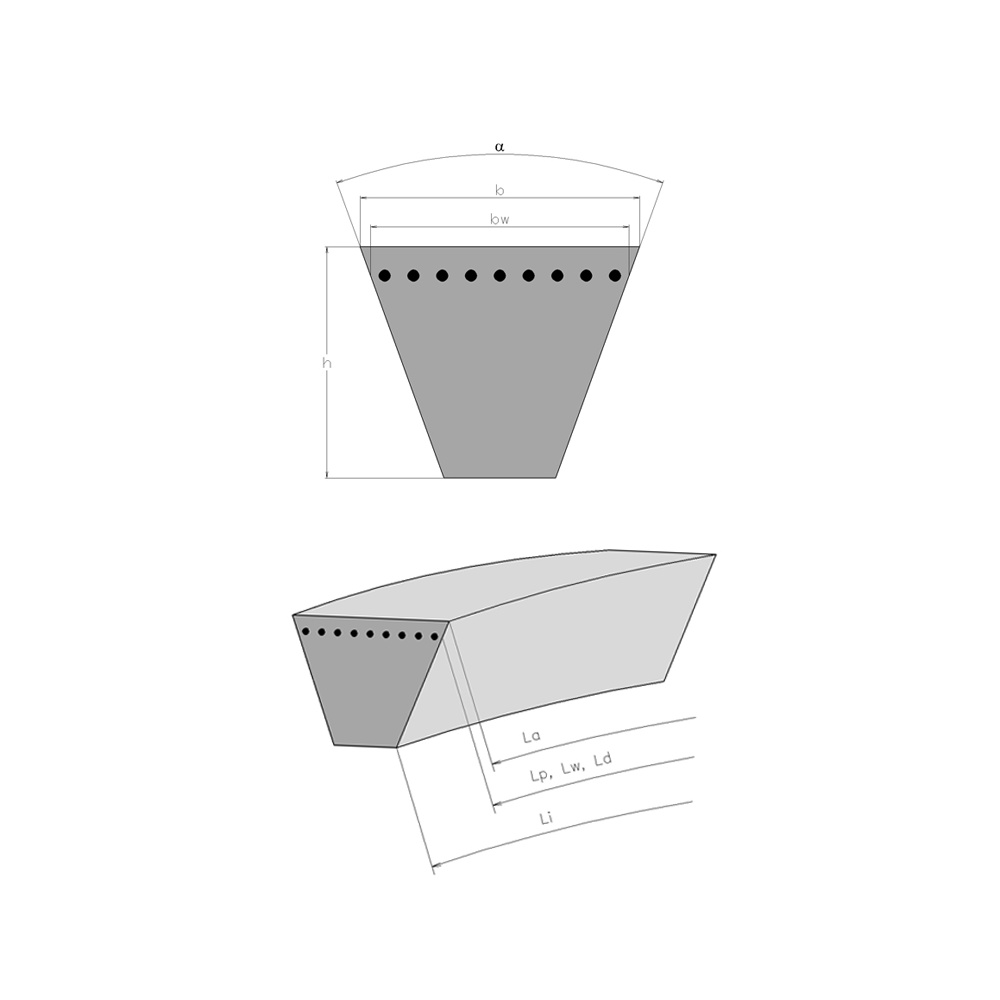

Parameters for identifying the belt’s dimensions and type.
La Outer length (circumference).
Li Internal length (circumference).
Lw=Lp=Ld Calculated length. Measured along the circumference of the neutral fibres, which remain the same length when the belt is bent (approximately at 2/3 of the belt’s height).
b = 12.7 mm Width of the outer base of the belt.
h = 10 mm Belt height.
bw = 11 mm Calculated width. The width of the belt at the neutral fibres.
α = 40° The angle formed by the sides of the belt, measured on a straight section whilst the belt is under tension.
