HTD 5M-15 mm PU+steel toothed belt (sold by the metre)

TIMING BELTS – HTD (HPPD, RPP) BY THE METRE 5M
HTD timing belts are made from neoprene rubber and fabric. HTD belts are currently the most versatile and widely used range in the toothed belt range. These belts are capable of operating at high speeds whilst maintaining low noise levels.
HTD belts are primarily used in equipment where precise timing is required and where relatively high power transmission is needed. Depending on the pitch (power transmission capacity), they are used in applications ranging from domestic use to industrial and agricultural applications (agricultural machinery, hand tools, vending machines, industrial drives, etc.)
Standard types supplied: HTD – 3M, 5M, 8M, 14M

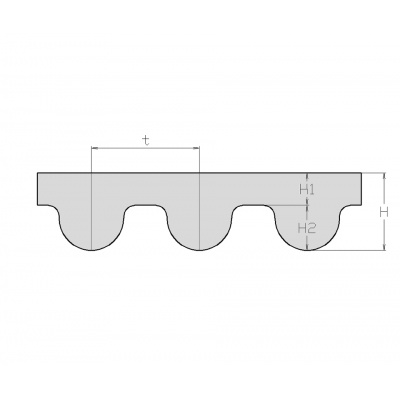

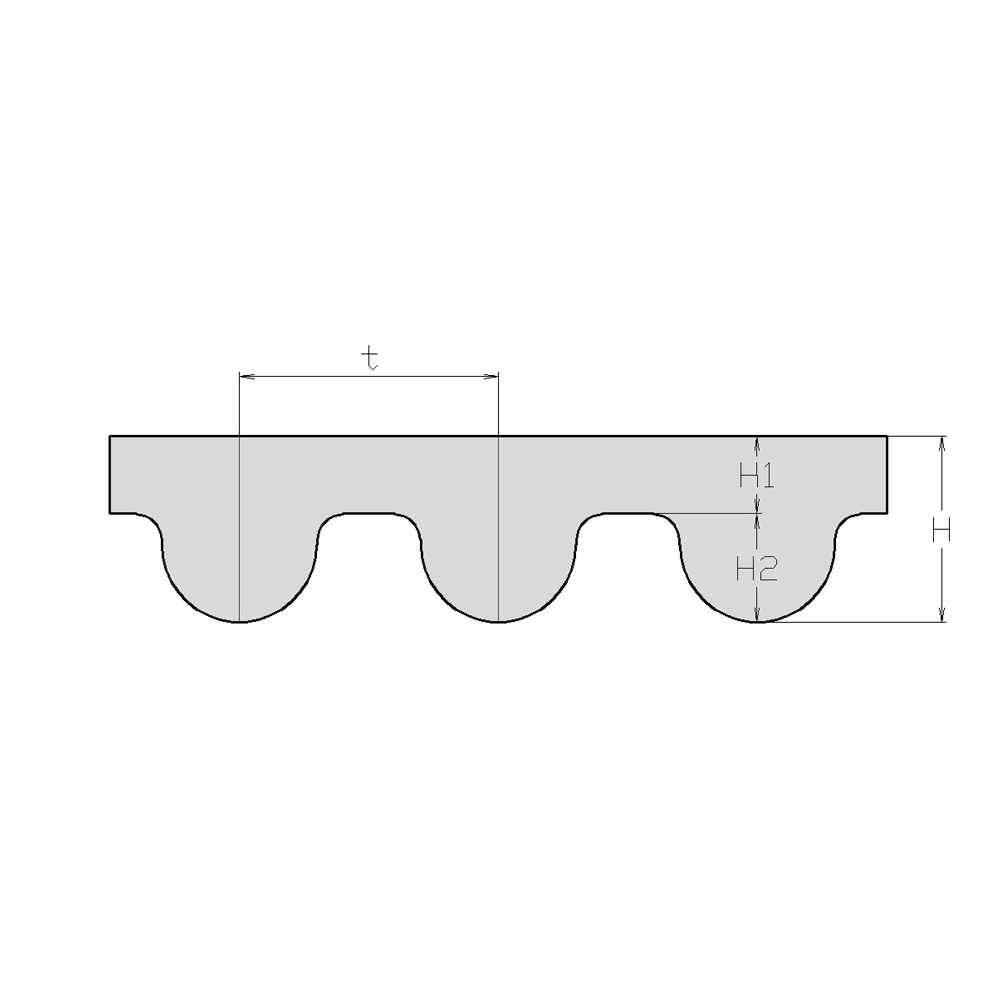

Dimensions – HTD-5M
t = 5 mm Tooth pitch.
H1 = 1.88 mm Body height.
H2 = 1.93 mm Tooth height.
H = 3.81 mm Total height
